CRAWER LED Headlight Black Square (3 Functions)

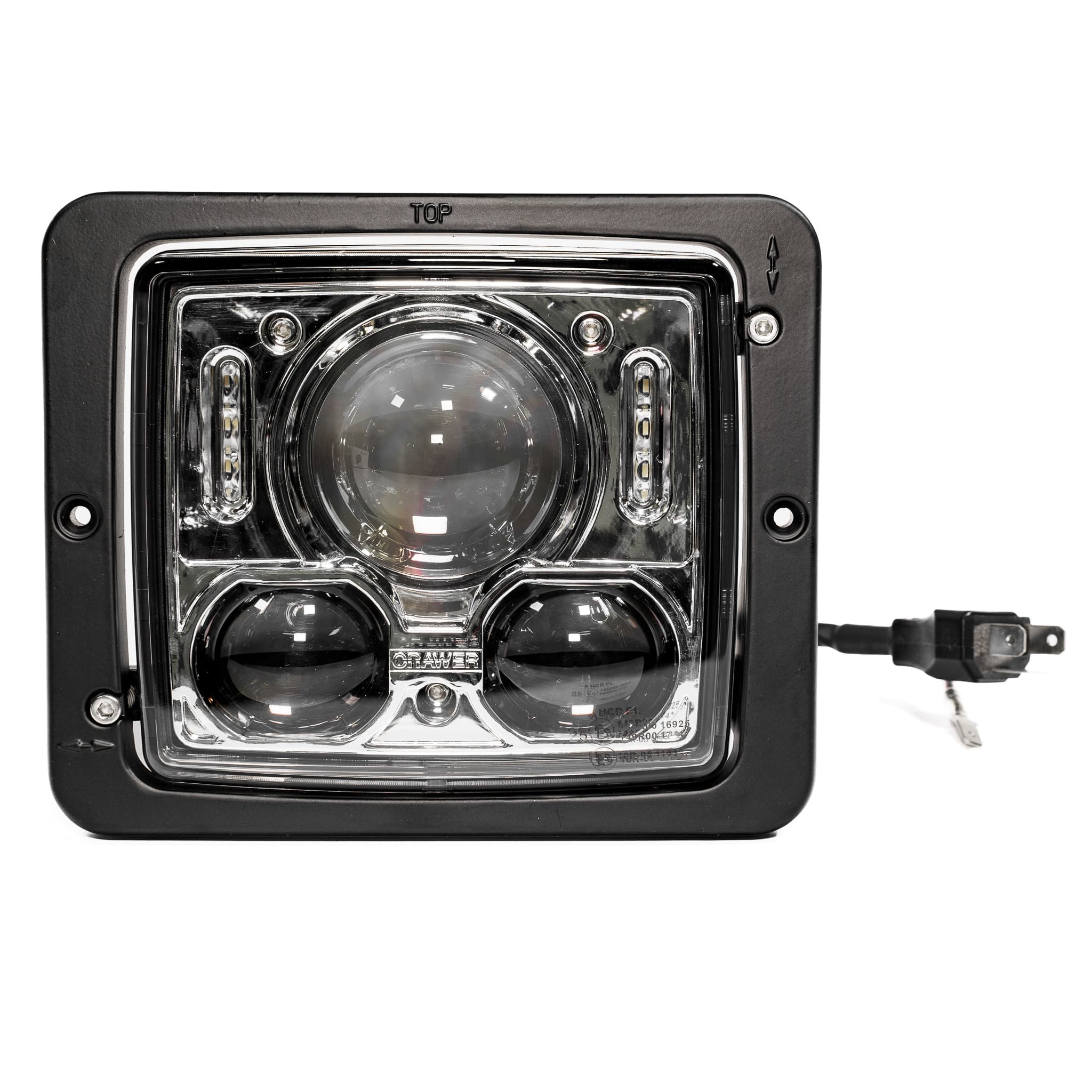

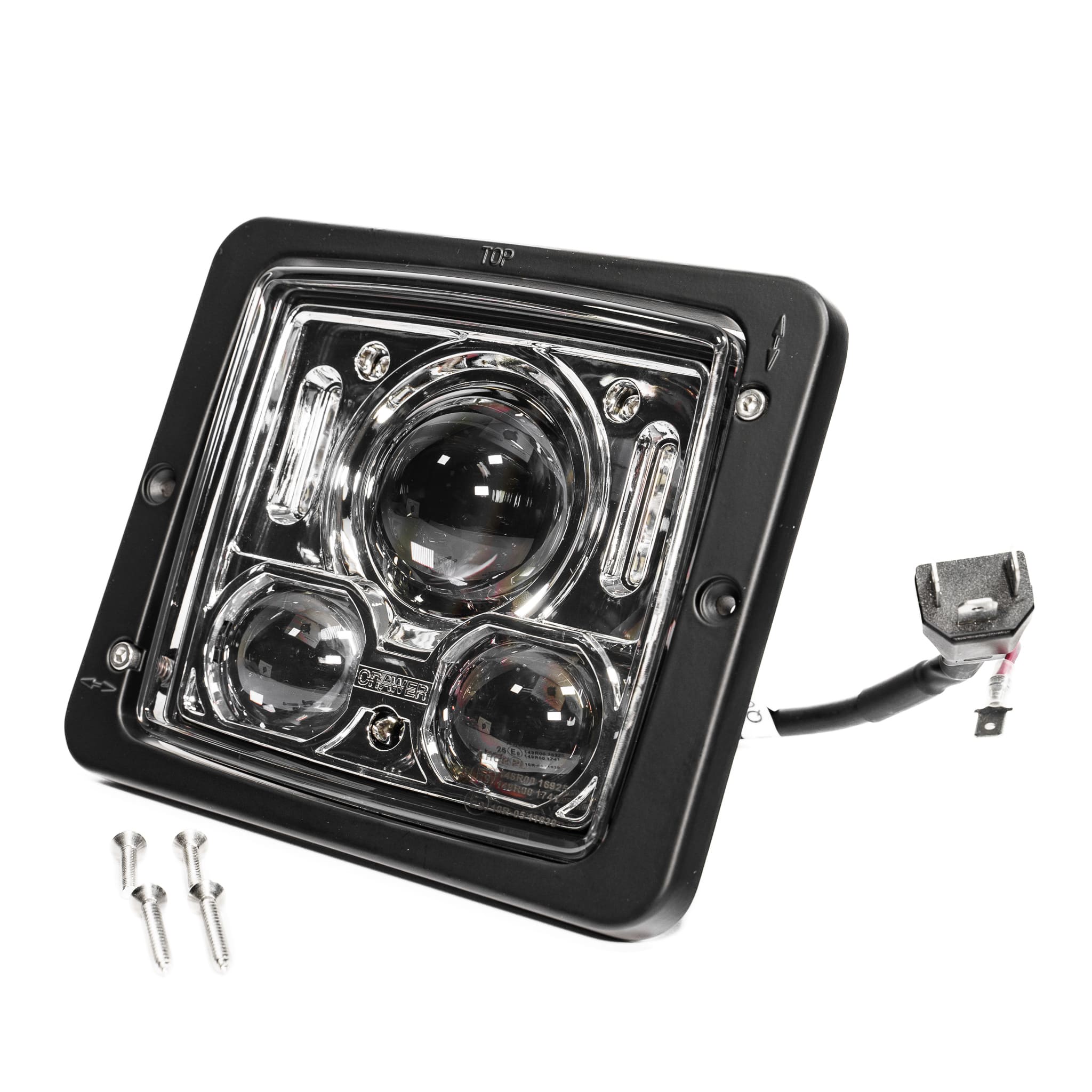

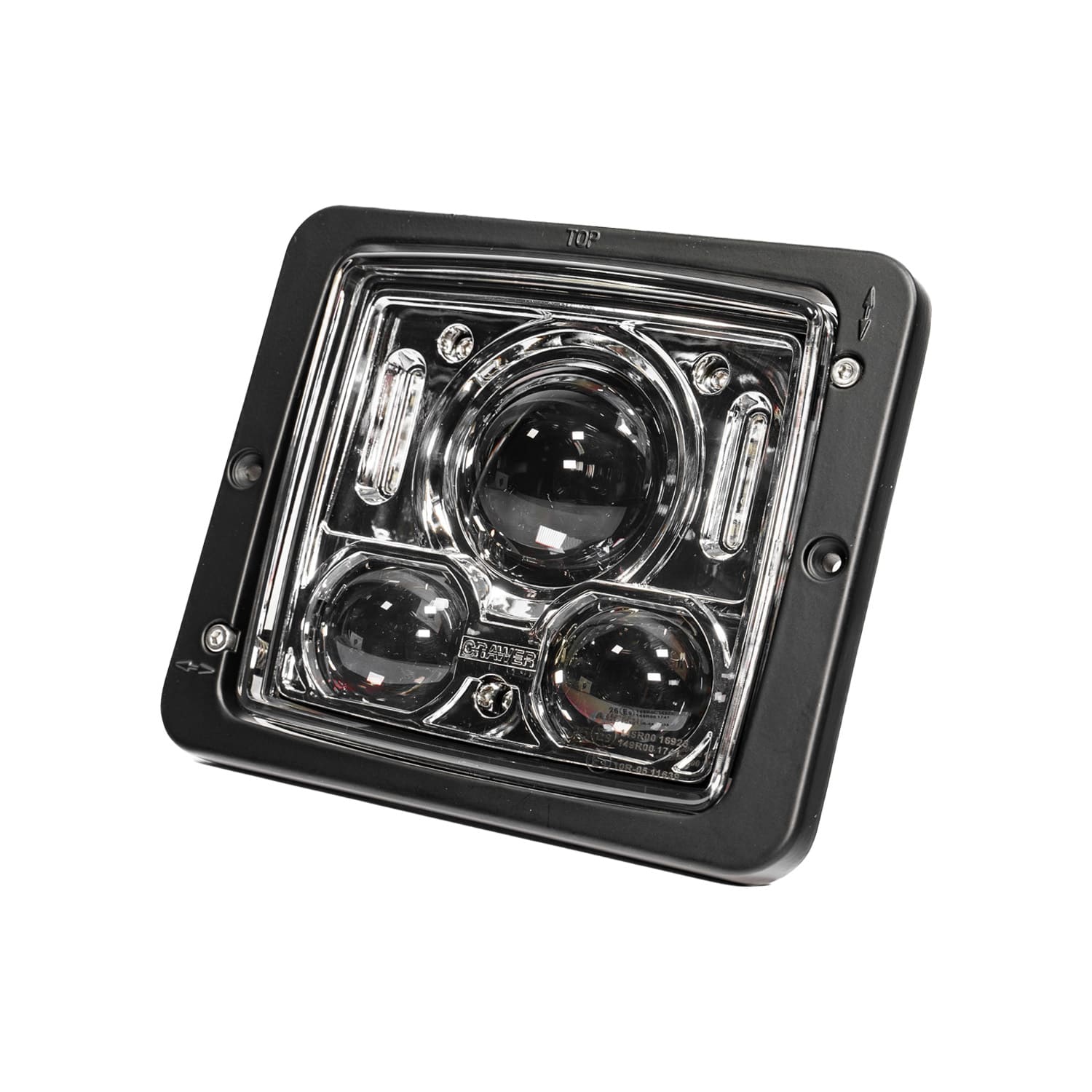

This CRAWER square LED headlight replaces the original round or square sealed-beam units fitted to a wide range of tractors and earthmoving machines built from the 1970s onward, including many Case and Fendt models. Mounting takes just two screws, and the internal unit can be removed from the supplied frame if you’d rather fit it into your original housing.

With 30W low beam, 50W high beam and an integrated daytime running light, this headlight combines three functions in one compact unit. The aluminium housing and hard-coated, UV-protected lens are built for continuous outdoor use on tractors and earthmoving equipment.

(See all headlights by clicking here)

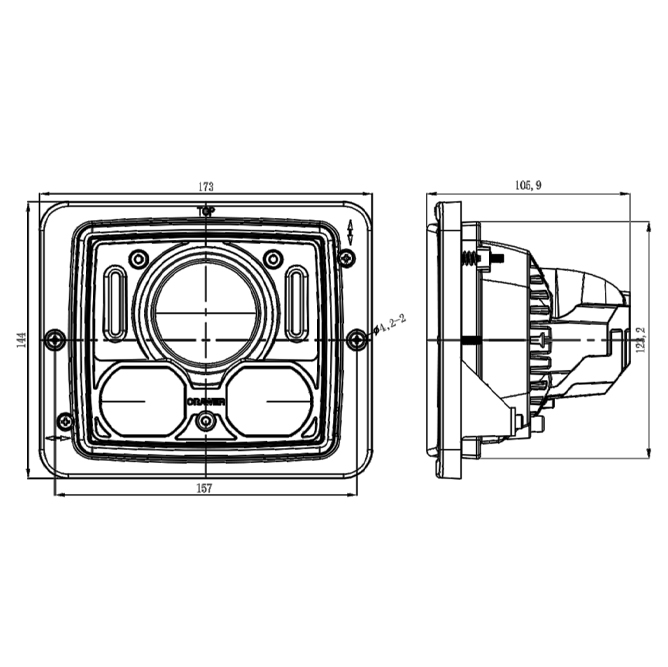

Dimensions and installation

• Width: 173 mm
• Height: 144 mm
• Depth: 106 mm
• Bolt spacing: 157 mm, centre-to-centre

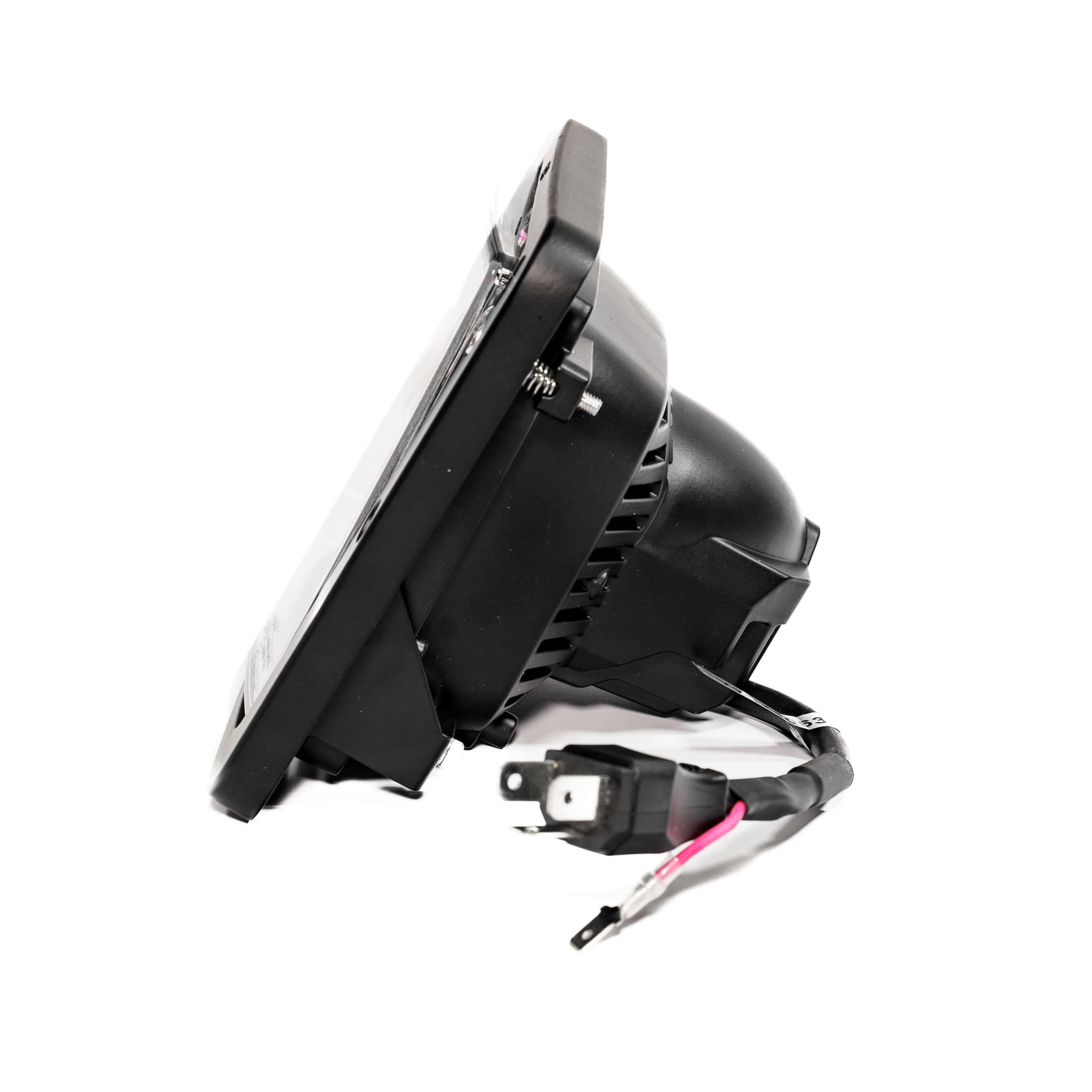

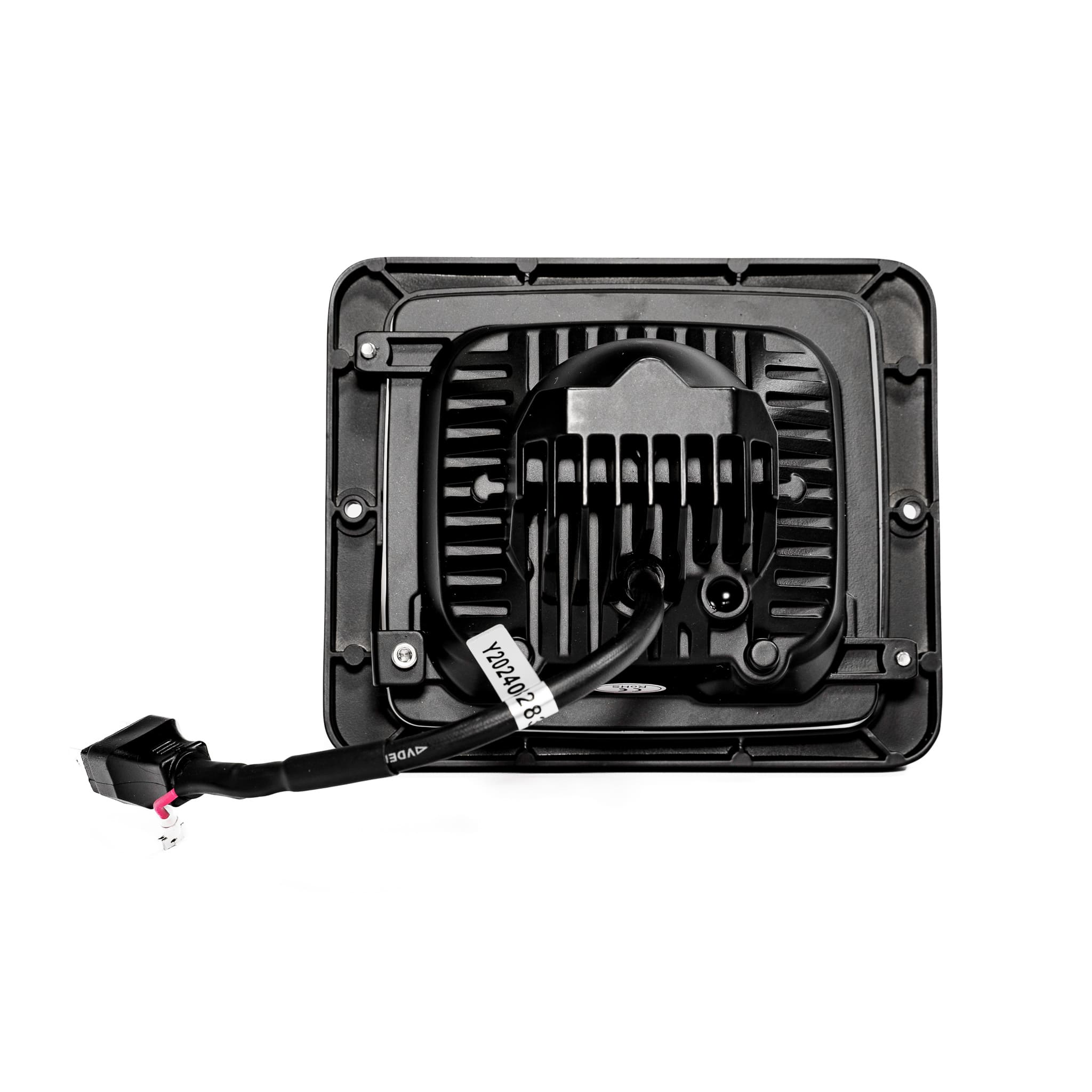

• Cable: H4 connector plus a flat spade connector for the DRL, 10 cm pigtail

Tip: measure your bolt spacing before ordering. The inner unit can also be unscrewed from the CRAWER frame if you need to reuse your original housing.

Compatibility

Designed for Case and Fendt tractors fitted with a square, three-function headlight on a 157 mm bolt pattern.

• Case: Series 33, 40, 43, 44, 45, 46, 55, 56 and Classic tractors
• Fendt: Farmer 100, 200 and 300 series, plus Favorit 600 and 800 series

OEM references: 3140022R91, 3404170R91, 3404170R94, X830160010000, 1AA004109021.

Not sure if it fits your model? Contact us and we’ll help confirm compatibility.

Also suitable for other machines?

This headlight footprint has been used across many tractor and earthmoving machine brands since the 1970s, so it may also suit machines outside the Case and Fendt range as long as the bolt spacing and connector type match.

If you’re running a different brand and want to check the fit, contact us before ordering.

Why E-mark approval and CISPR Class 4 matter

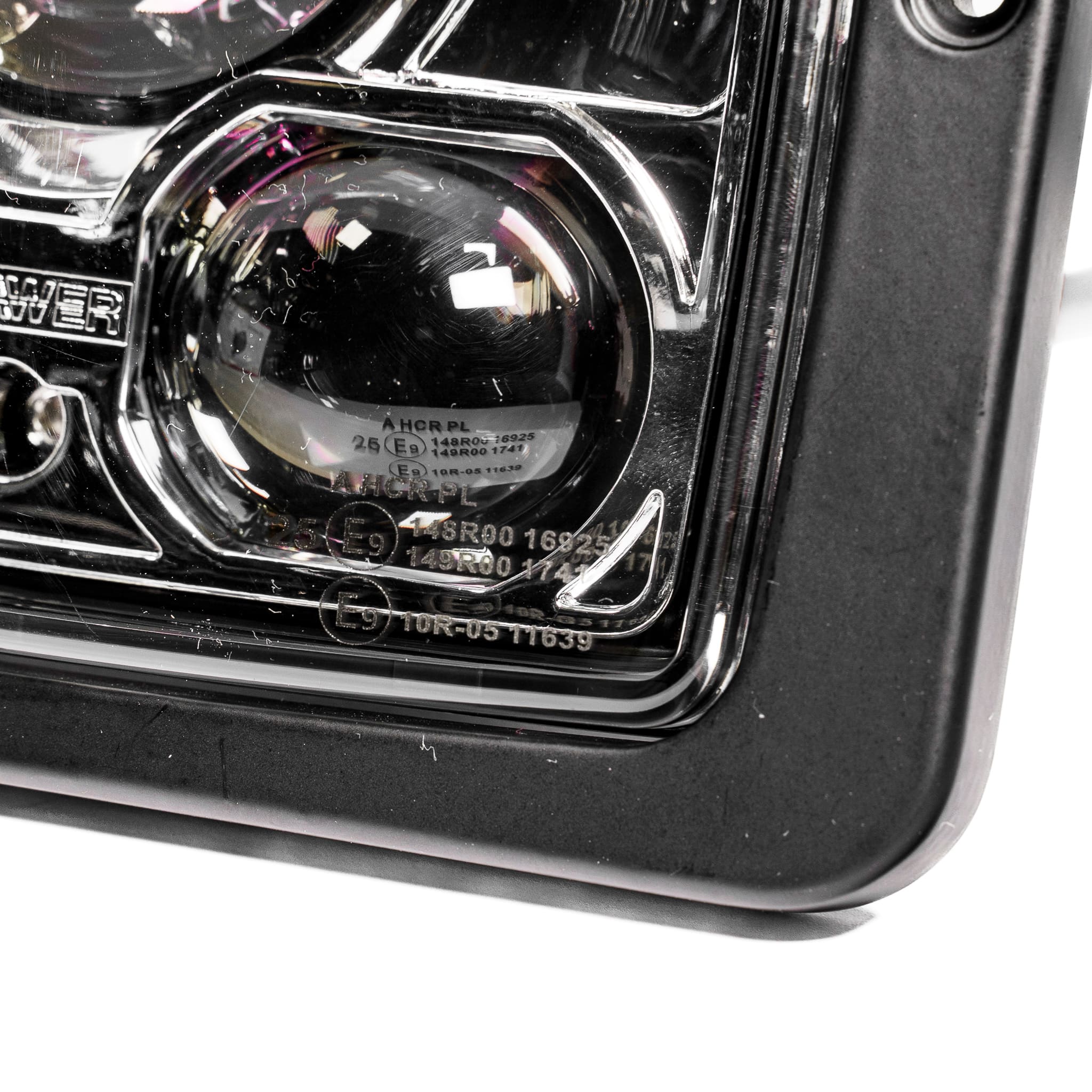

E-mark approval (E9, R112/R10):
This headlight carries E9 type approval, meaning it meets the beam pattern and glare requirements to be used legally on public roads — useful if your tractor travels between paddocks and worksites.

CISPR25 Class 4 EMC:
Modern tractors rely on GPS, two-way radios and onboard electronics. CISPR25 Class 4 shielding keeps this headlight from generating interference that could disrupt those systems.

Frequently asked questions

Why choose this CRAWER LED headlight at Wattz?

We specialise in LED lighting for agricultural machinery and help you choose the right solution for your setup. Read our customer feedback on Google.

This CRAWER headlight brings low beam, high beam and DRL together in one E-marked, CISPR Class 4 unit, so you get road-legal, interference-free lighting without running three separate lamps. Order today for a clean two-screw upgrade on your Case or Fendt tractor.
