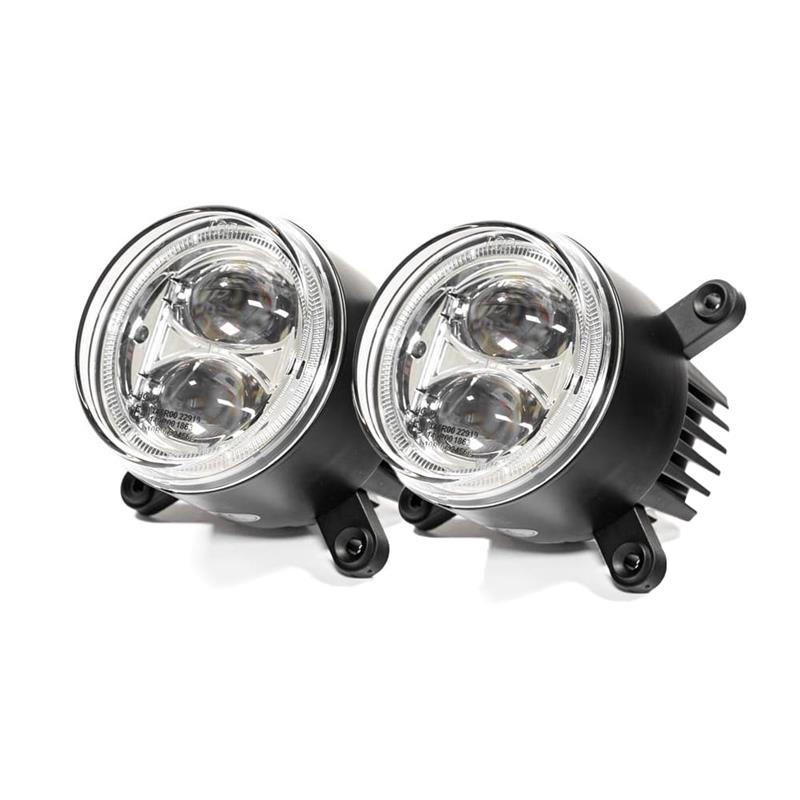

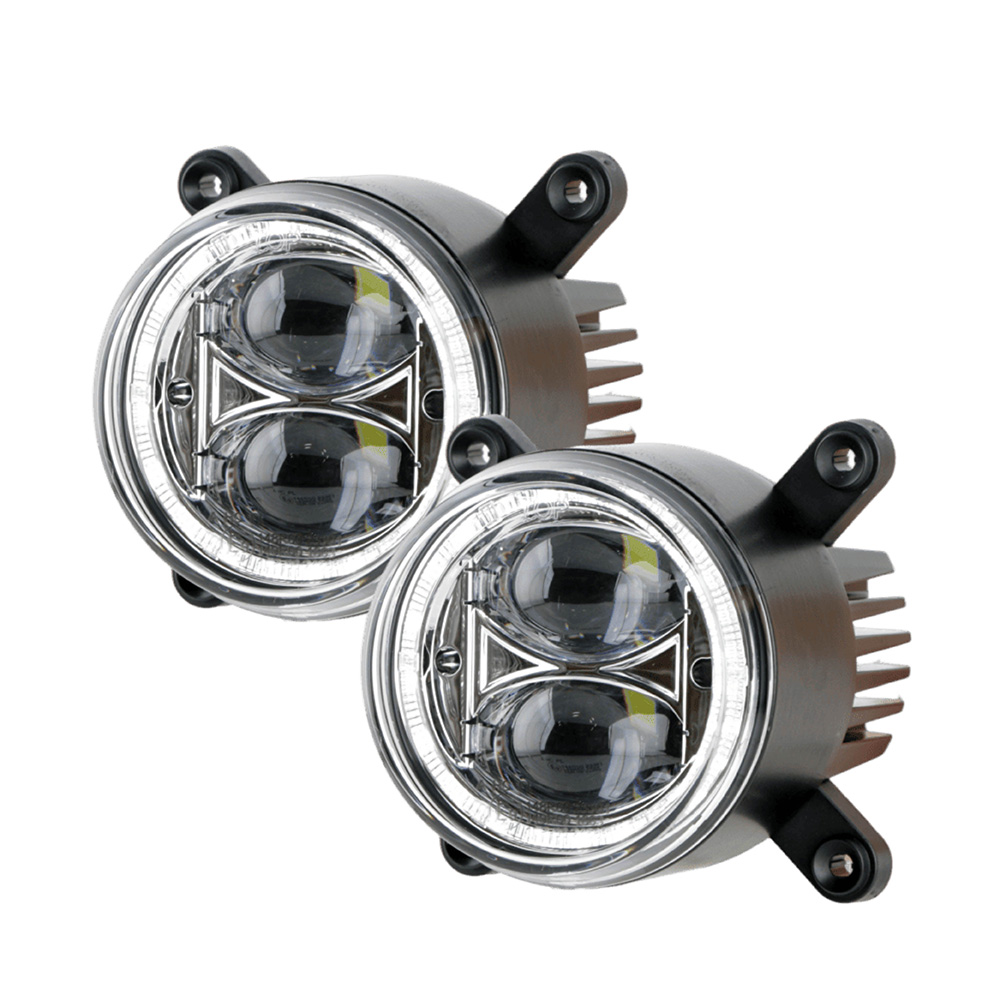

CRAWER Hyperios Series LED Headlight Pair – Low Beam

This pair of CRAWER Hyperios 90mm LED headlights delivers dedicated low beam lighting, built as a direct replacement for the original Hella halogen units fitted to Fendt, Claas and Massey Ferguson tractors. Each lamp uses a 9005/9006 connector, so if your original headlight runs on an H7 bulb, a small adapter plug bridges the gap without any rewiring.

With a 9-32V input, IP67 sealing and a full E-mark approval (R112/R10), the CR-3007 puts out 30W of symmetric, cold white light at 6000K. The compact 90mm housing suits both bonnet and roof mounting, and the lamp is CISPR Class 4 rated so it won’t interfere with your radio or onboard electronics.

(See all headlights by clicking here)

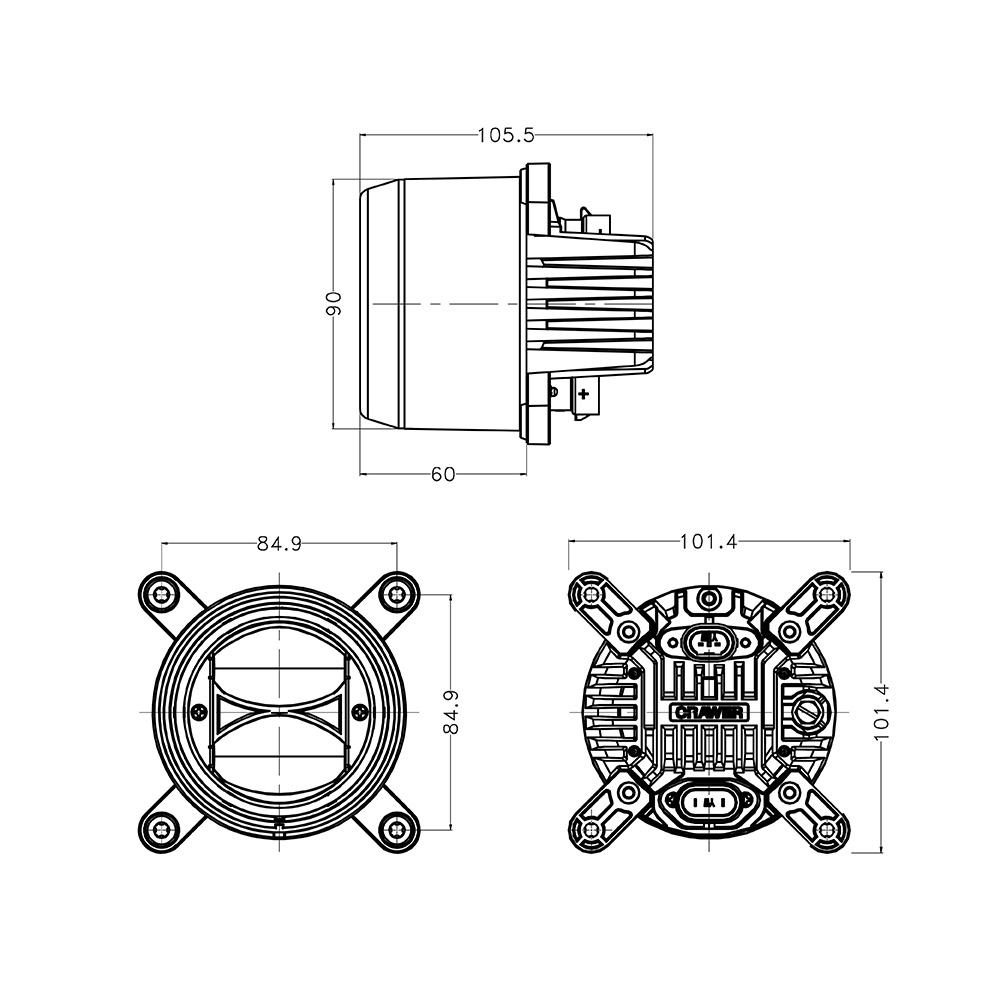

Dimensions and installation

• Diameter: 90 mm
• Depth: 106 mm
• Bolt spacing: 84.9 mm, centre-to-centre
• Connector: 9005/9006 (H7-to-9005 adapter available if your original headlight uses an H7 bulb)

Tip: this lamp has a 2-pin connector for an optional CR-RES02 CAN-bus resistor. Fit the lights first and only add the resistor if your dash shows an error code.

Compatibility

Designed for Fendt 800 and 900 SCR series tractors, and also fits the Massey Ferguson 5600, 5700, 6600, 6700, 7600, 7700, 8600 and 8700 series, plus the Claas Celtis, Nectis, Elios, Axos, Atos, Arion and Axion ranges.

• Fendt: 800 series SCR, 900 series SCR
• Massey Ferguson: 5600 / 5700 / 6600 / 6700 / 7600 / 7700 / 8600 / 8700
• Claas: Celtis, Nectis, Elios, Axos, Atos, Arion, Axion

OEM references: Hella 008193027, Massey Ferguson 4352924M3 / 4352924M2 / B69383, Claas 0011064011.

Also suitable for other machines?

Yes. This pair uses the industry-standard 90mm housing with a 9005/9006 connector, so it also suits other tractors and machines fitted with the same size and plug, beyond the models listed above.

If you are running a different tractor and want to confirm the fit, contact us for advice.

Why IP67 sealing and CISPR Class 4 matter

IP67 sealing: Working headlights on a tractor face dust, mud and pressure-washing on a daily basis. IP67 sealing keeps water and dust out of the housing, so the lamp keeps working through the harshest field conditions instead of fogging up or failing early.

CISPR Class 4 interference suppression: Cheaper LED units can flood the cab with electrical noise, causing static on the radio or glitchy GPS and guidance systems. CISPR Class 4 certification means this lamp has been tested to stay clean, so your electronics keep working normally alongside it.

Frequently asked questions

Why choose this CRAWER Hyperios LED Low Beam Headlight Pair at Wattz?

We specialise in LED lighting for agricultural machinery and help you choose the right solution for your setup. Read our customer feedback on Google.

The CR-3007S is a clean, plug-and-play way to bring your Fendt, Claas or Massey Ferguson low beam up to modern LED output without touching the wiring loom. Order today and pair it with the CR-3008S high beam set for a complete LED headlight upgrade.
