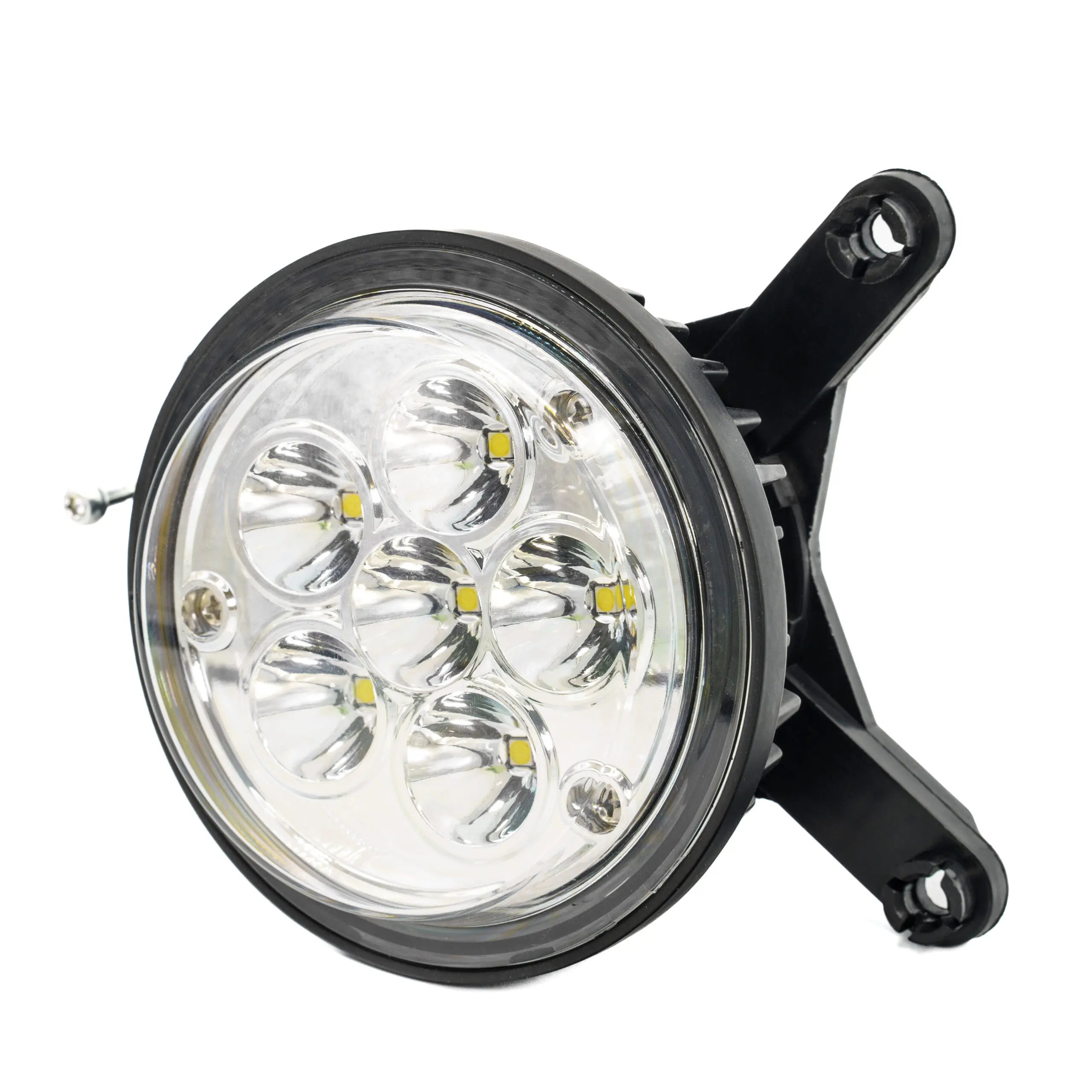

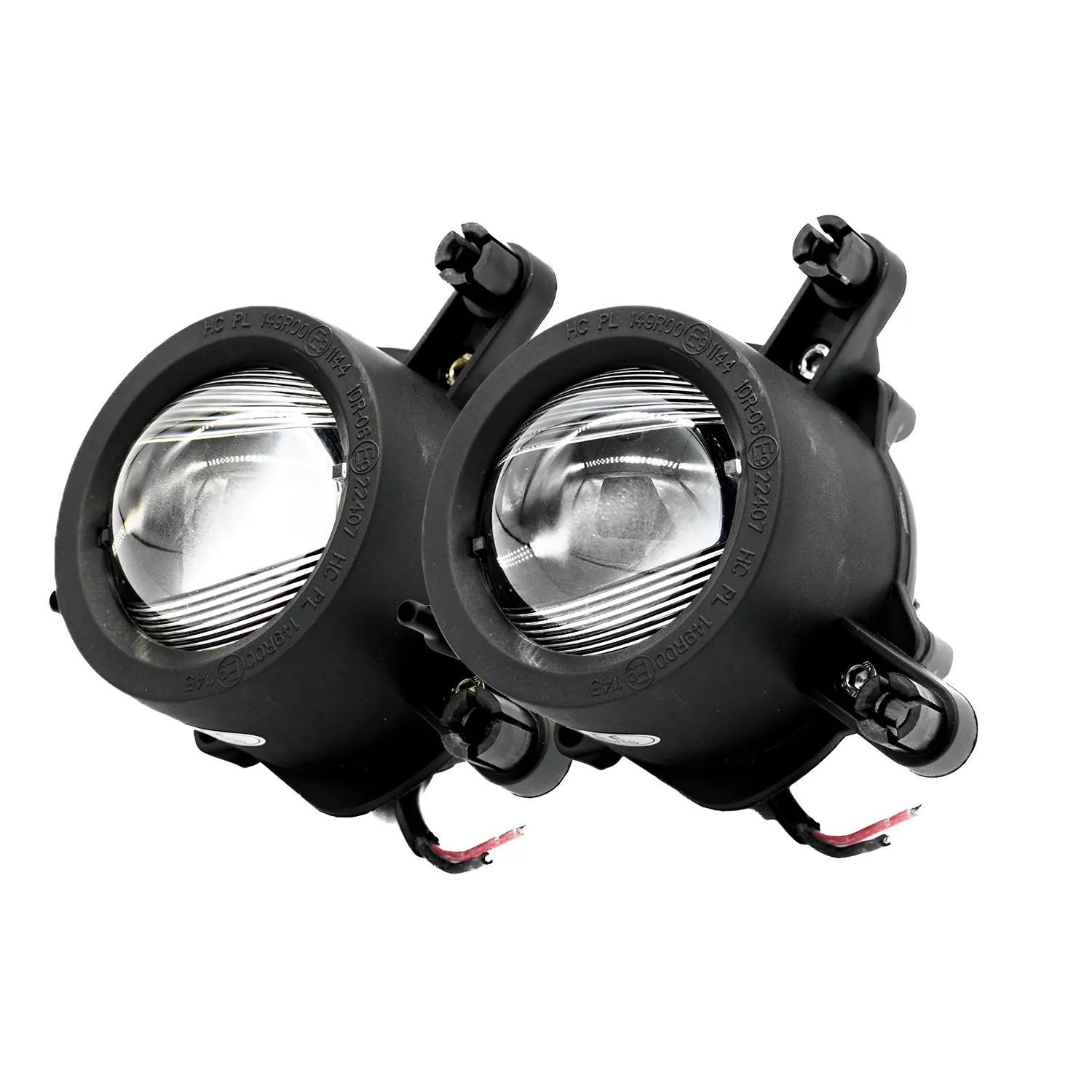

CRAWER LED Headlight Pair for John Deere R/M Series - High Beam

Specifications

Brand	CRAWER
Headlight Functions	High Beam
Classed As Road Legal	R112 / R10
Colour Temp	5500K
Electrical Protection	Radio frequency interference free I CISPR 25 class 4
Finish	Powder-coated aluminum
Harness Connector	9005
Input Voltage	10-32V
IP Rating	IP67

CRAWER LED Headlight for John Deere R/M Series - High Beam

Brand	CRAWER
Headlight Functions	High Beam
Classed As Road Legal	R112 / R10
Colour Temp	5500K
Electrical Protection	Radio frequency interference free I CISPR 25 class 4
Finish	Powder-coated aluminum
Harness Connector	9005
Input Voltage	10-32V
IP Rating	IP67
Output	60W

Product information

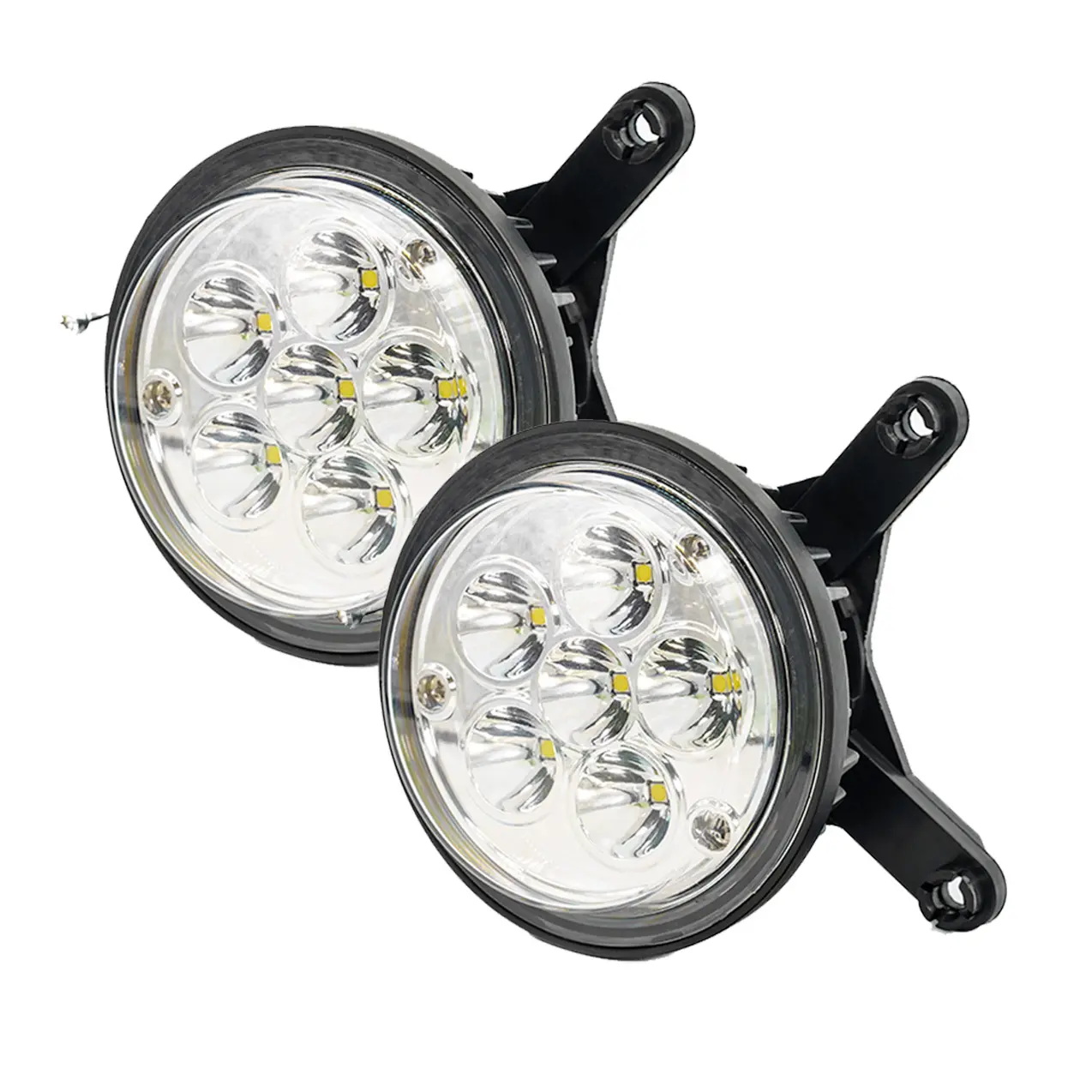

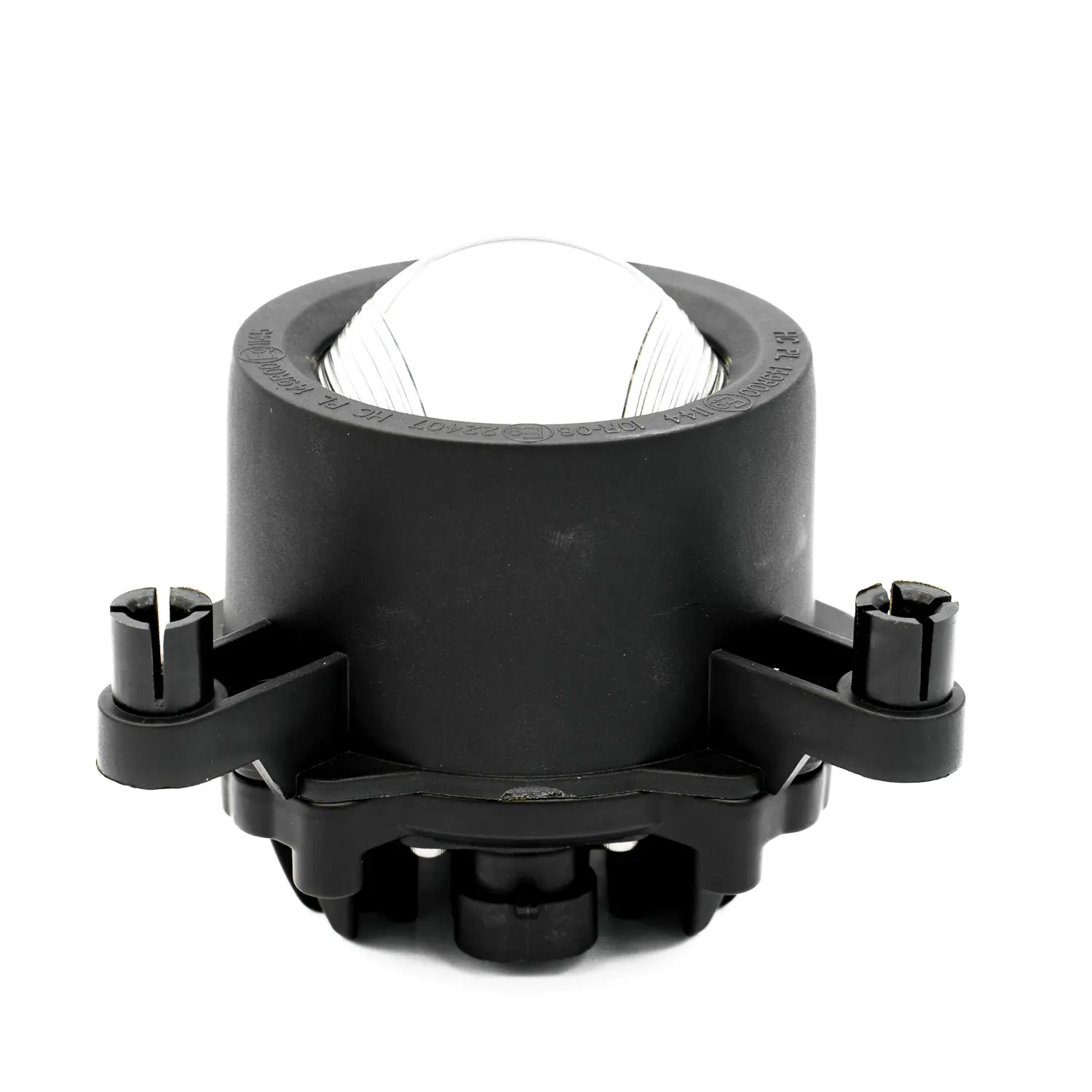

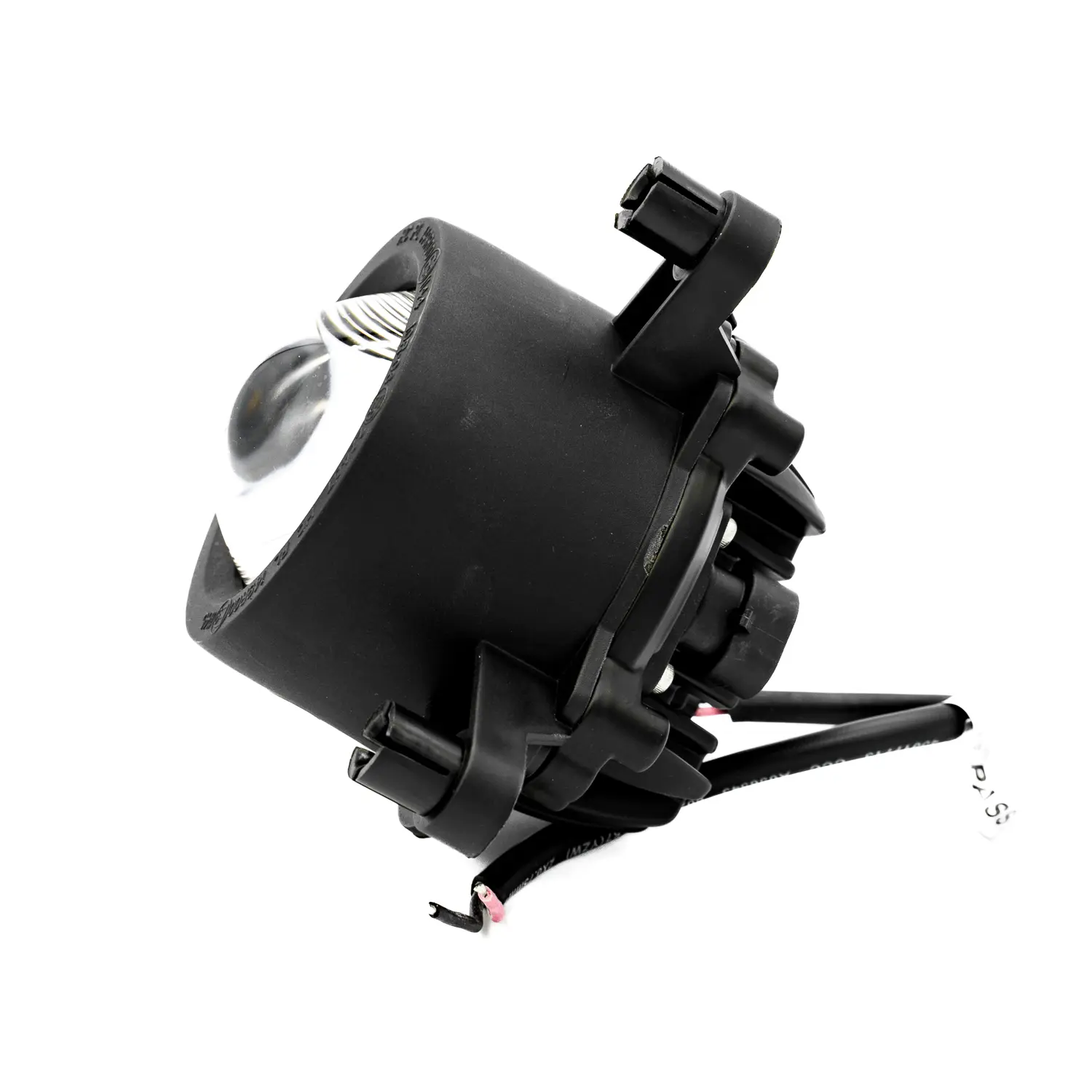

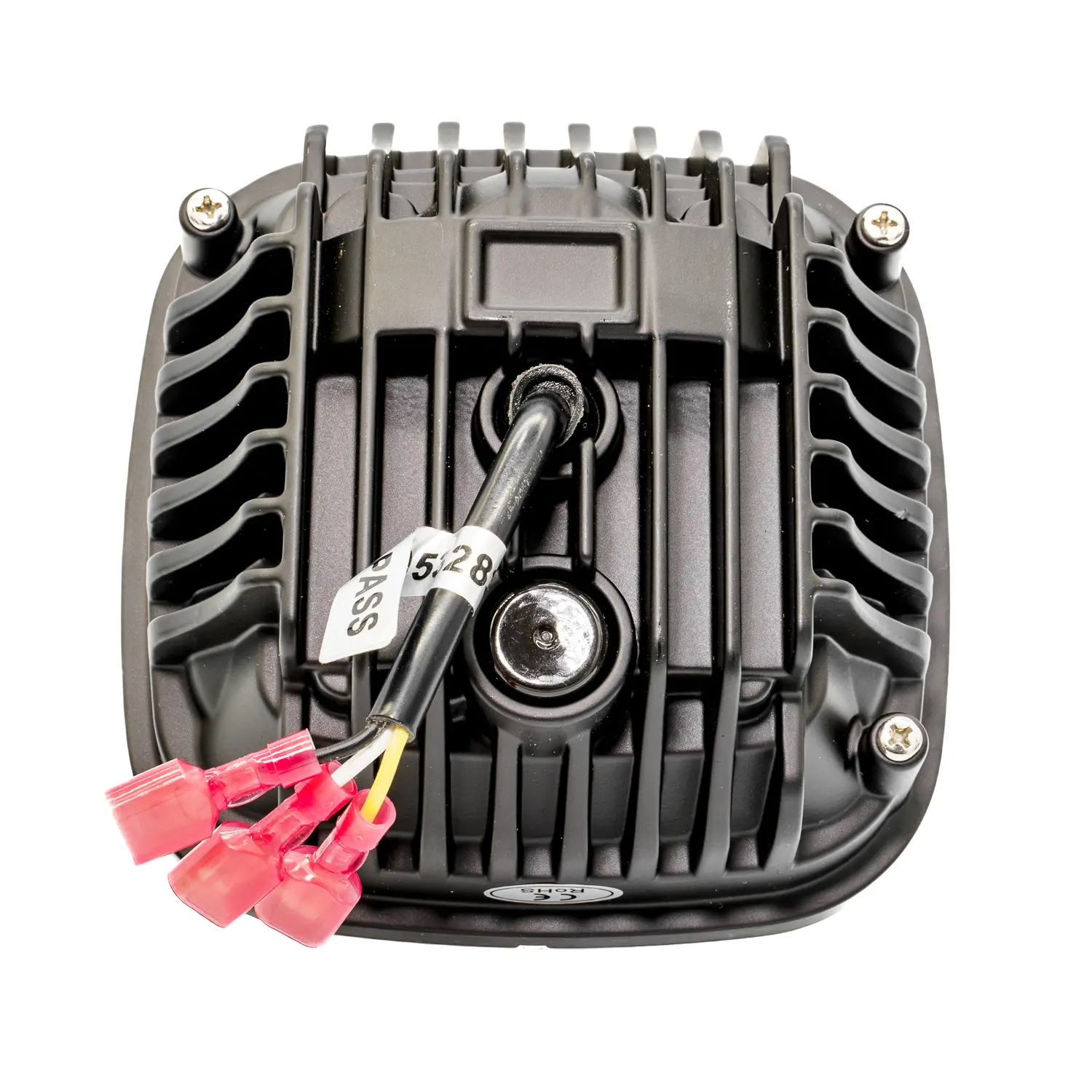

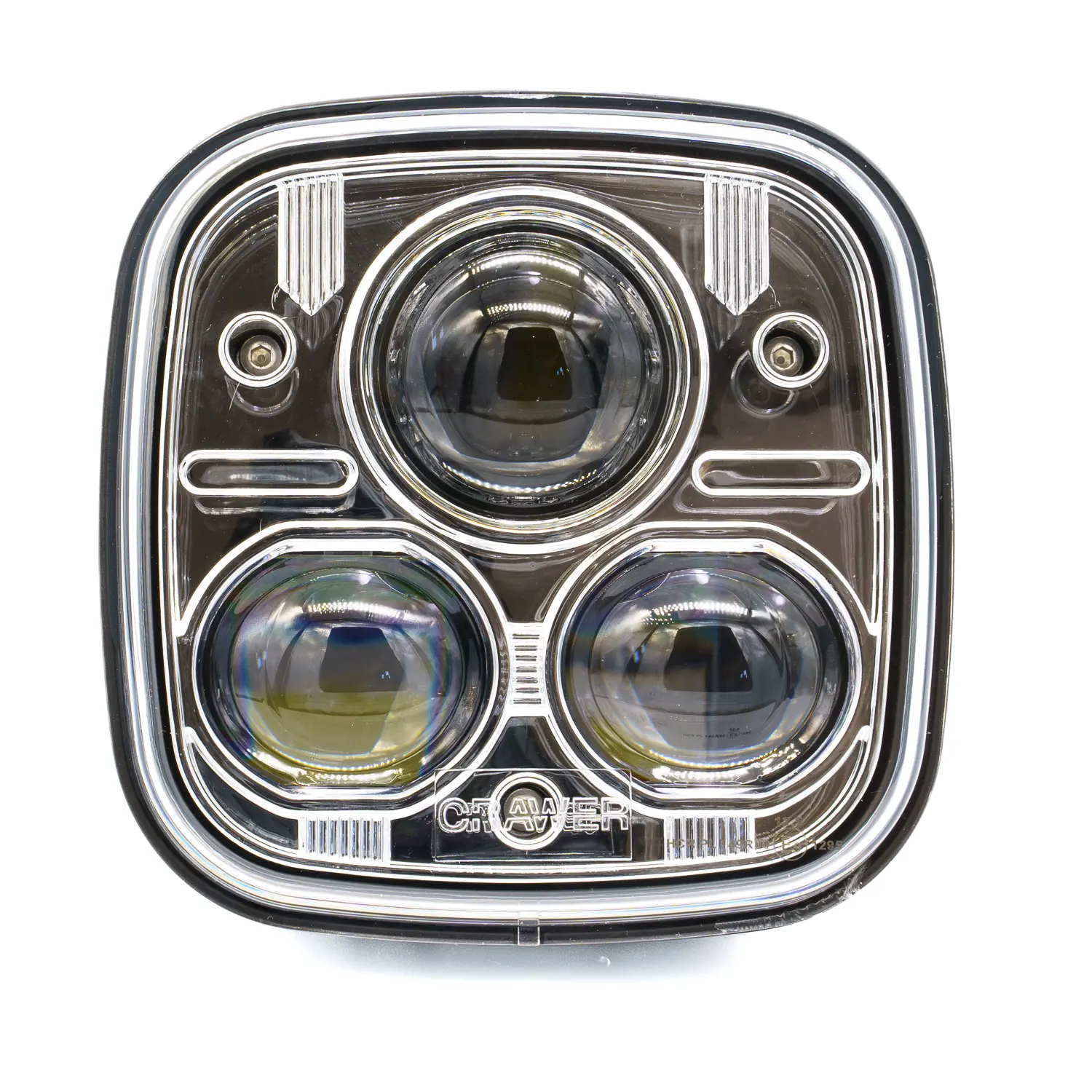

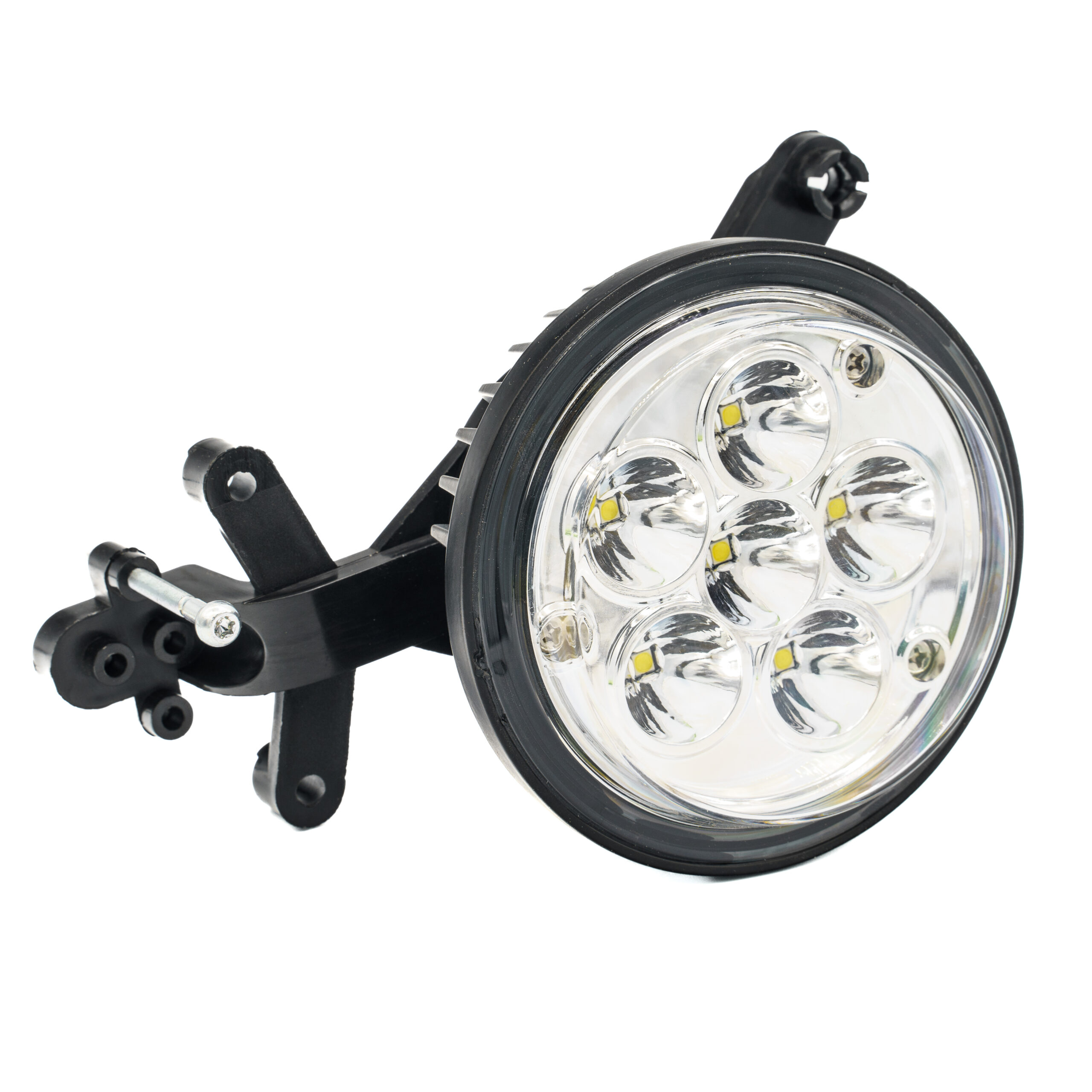

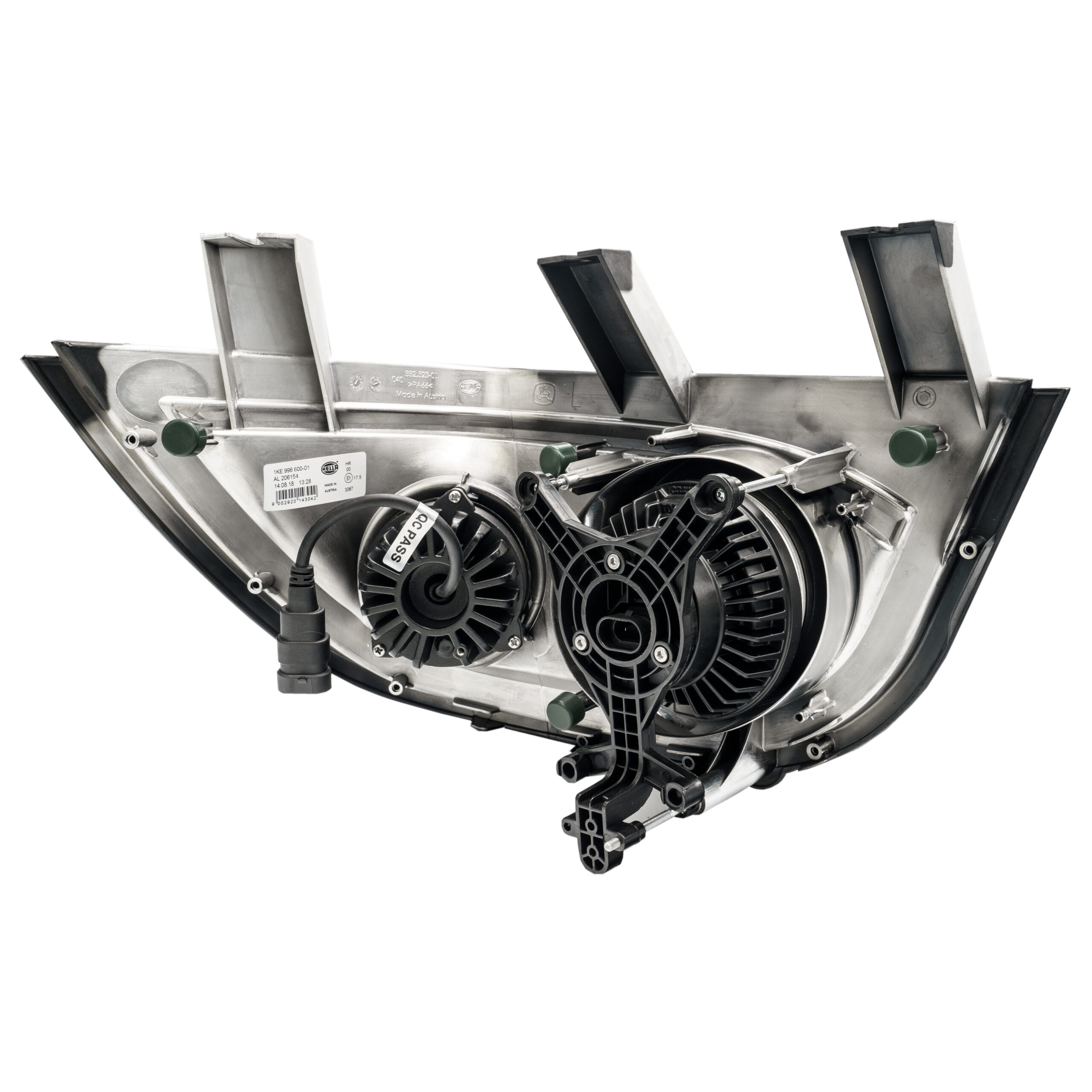

This set includes two CRAWER LED headlight units replacing the original high beam headlights on John Deere 6R, 6M, 6RC, 7R and 8R series tractors. Each unit uses a 9005 connector, matching the original wiring without cutting or splicing.

With a 10–32V input, IP67 sealing, CISPR Class 4 interference suppression and full road-legal approval (E9, R112, R10), the CR-3041 delivers a clean powder-coated aluminium high beam upgrade rated for 50,000+ hours. Useful for night tillage and headland work where stronger forward light matters.

(See all headlights by clicking here)

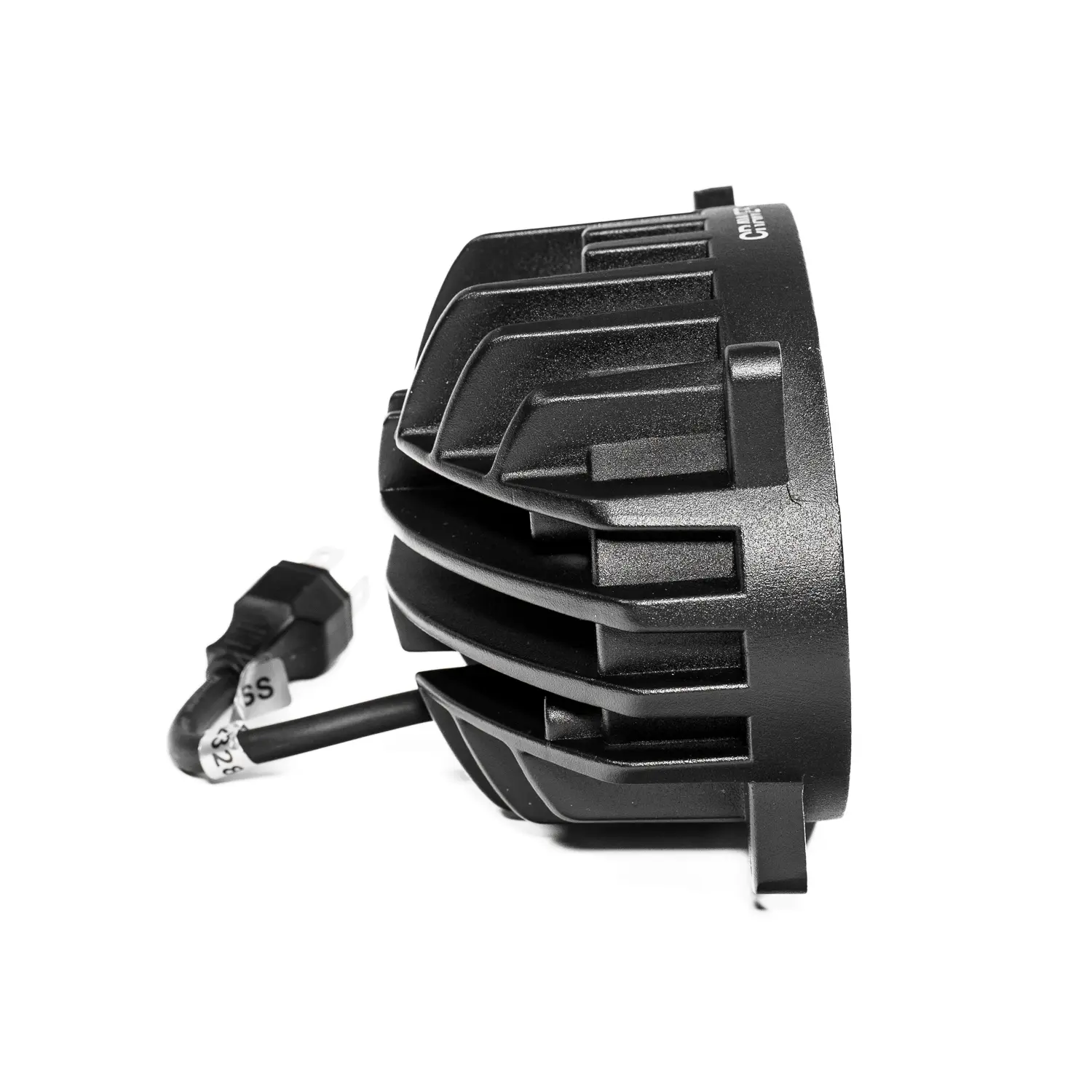

Dimensions and installation

Width: 179 mm
Height: 147 mm
Depth: 93 mm with bracket / 80 mm without bracket
Lens diameter: 113 mm

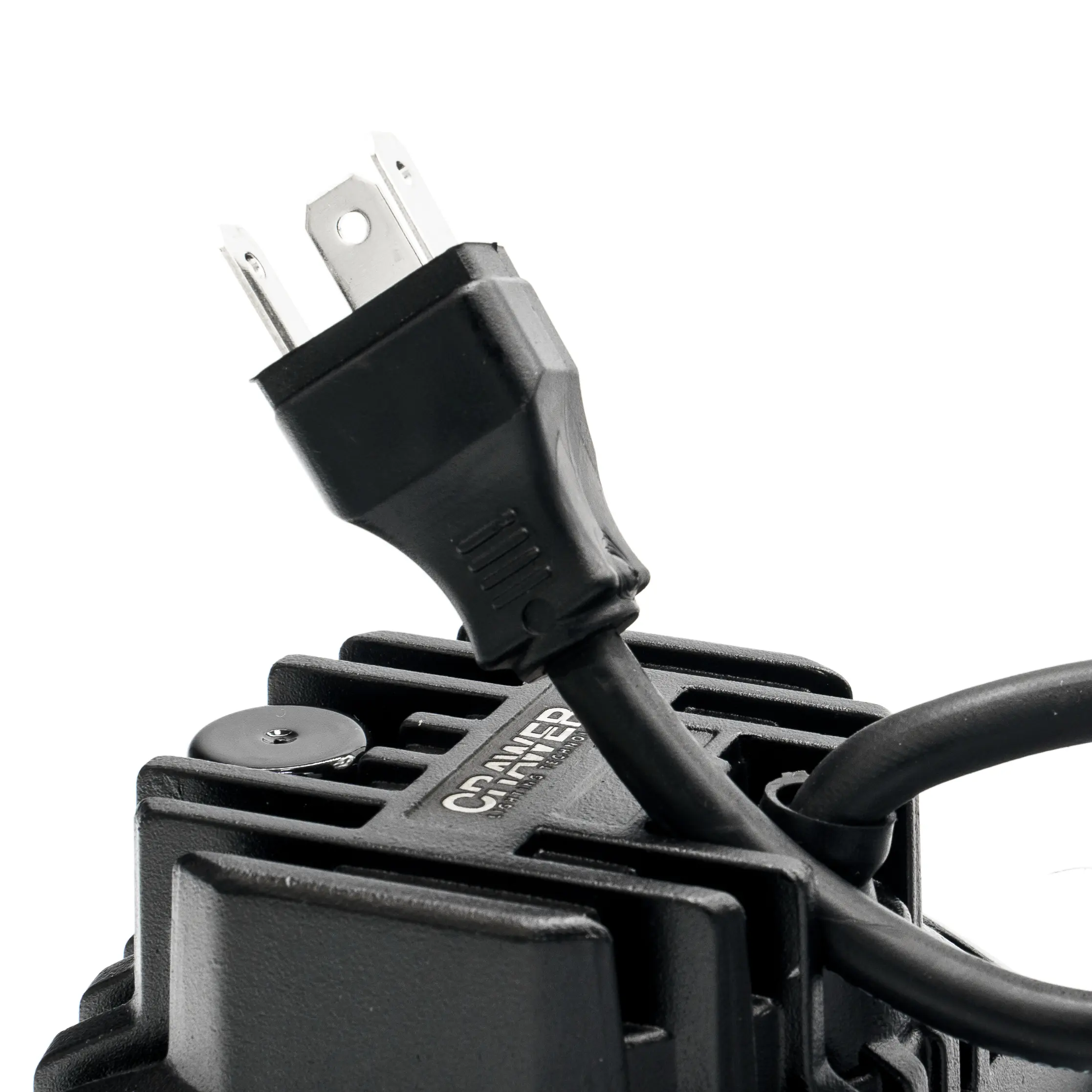

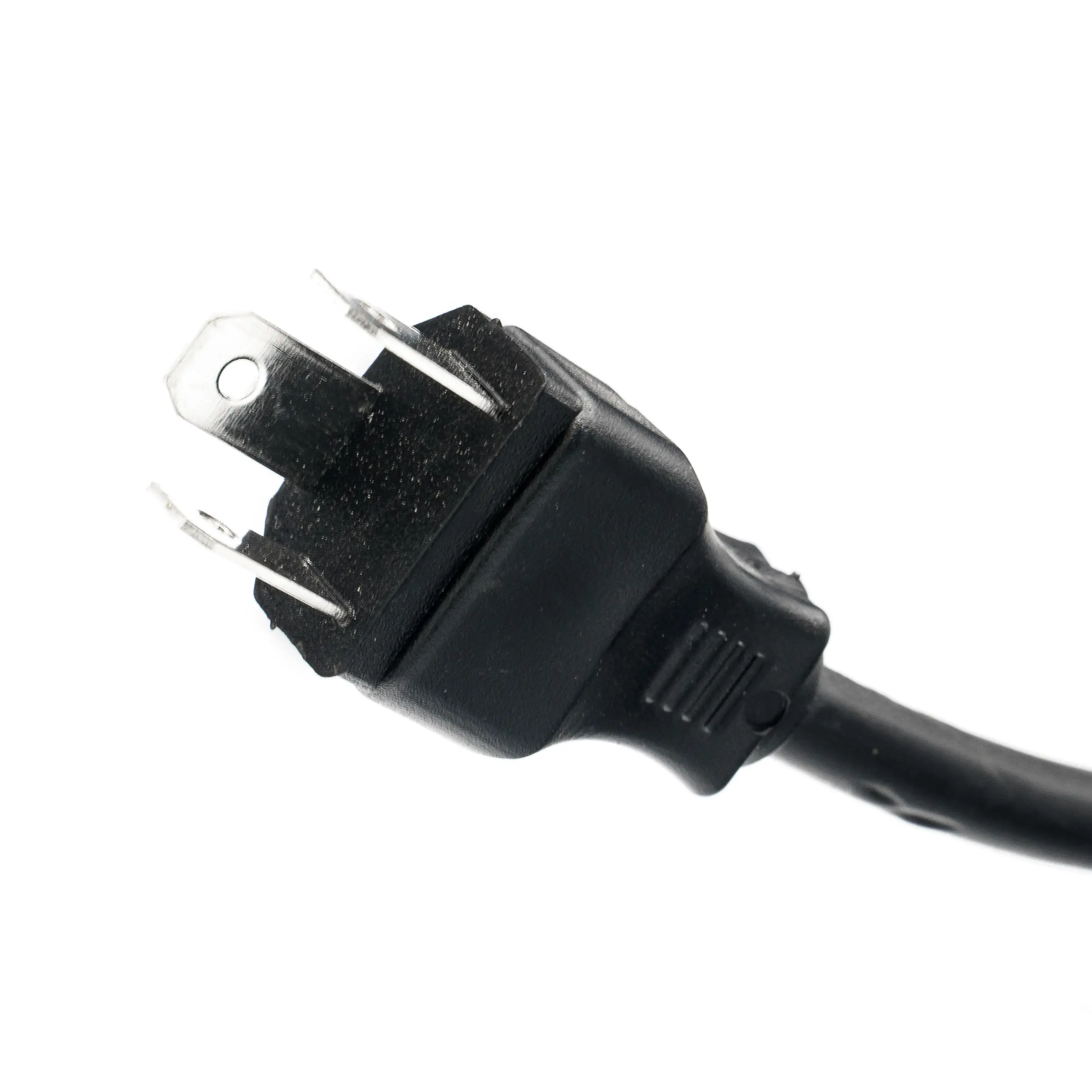

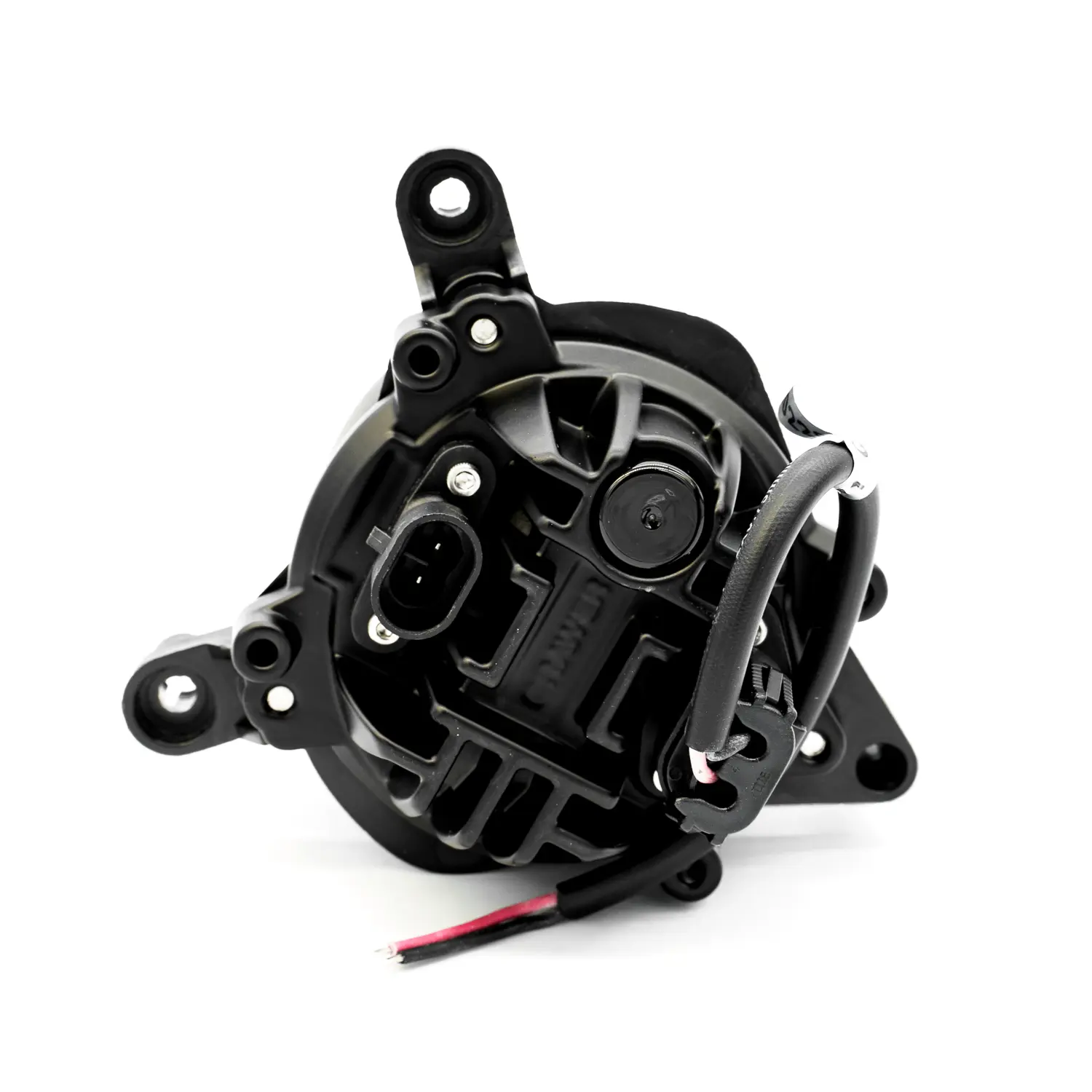

Connector: 9005, no positive/negative preference

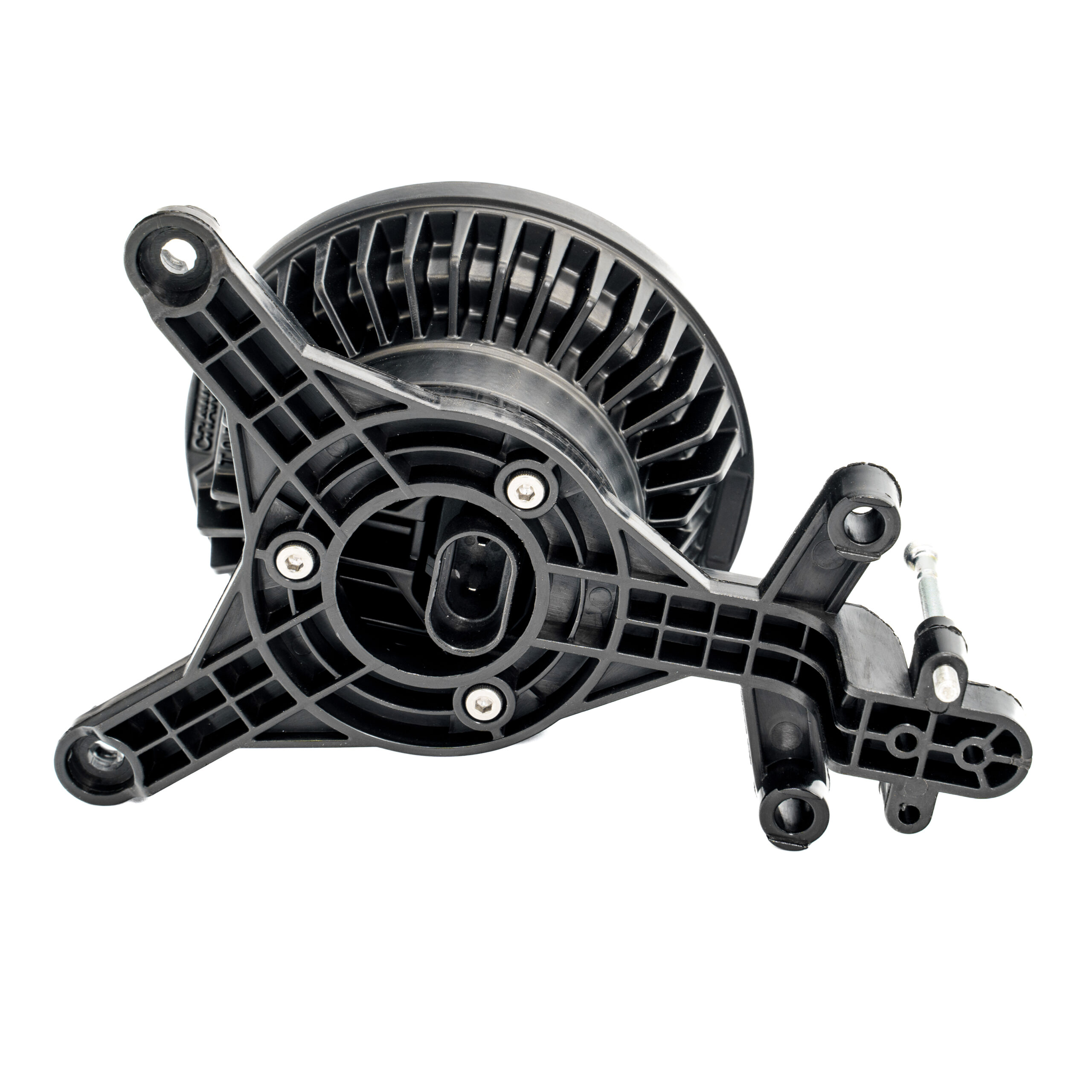

Tip: always confirm your original bracket is fitted before wiring in the new unit — reusing the factory bracket keeps installation plug-and-play.

Compatibility

Designed for John Deere tractors fitted with the factory high beam headlight housing.

6 Series: 6R, 6M, 6RC
7 Series: 7R
8 Series: 8R

OEM references: matches factory 9005 wiring, no adapter required.

Also suitable for other machines?

This unit is dimensioned for the John Deere cab housing only. The bolt spacing and housing shape are specific to 6R, 6M, 6RC, 7R and 8R models and won’t fit other tractor brands.

If you’re running a different tractor and want a comparable LED upgrade, contact us and we’ll point you to the right product in our range.

Why CISPR Class 4 and road-legal approval matter

CISPR Class 4 interference suppression:
Modern tractors rely on GPS guidance, auto-steer and onboard computers. A headlight without proper EMC shielding can introduce noise into these systems, causing signal drop-outs or steering errors. CISPR Class 4 certification confirms the CR-3041 won’t interfere with any of that electronics.

E9, R112, R10 road-legal approval:
These markings confirm the headlight meets EU standards for beam pattern and electromagnetic compatibility, so it’s approved for use on public roads — useful if your tractor travels between paddocks or job sites on the highway.

Frequently asked questions

Will this fit my 6030 or 7030 series John Deere?

No — this high beam unit is designed specifically for 6R, 6M, 6RC, 7R and 8R series tractors, matching the factory 9005 connector and housing shape.

Does it include a low beam function?

No, this is a dedicated high beam unit only. Pair it with a matching low beam headlight if you need both functions.

Is it plug-and-play?

Yes. It uses the same 9005 connector as the factory headlight, so no wiring modifications are needed.

Will it interfere with my GPS or radio?

No. The CR-3041 is CISPR Class 4 certified, meaning it won’t cause interference with onboard electronics.

Why choose this CRAWER LED headlight pair at Wattz?

We specialise in LED lighting for agricultural machinery and help you choose the right solution for your setup. Read our customer feedback on Google.

The CR-3041S gives you a matched pair of high beam units built to the same 50,000-hour Osram LED spec as the factory original, so both sides age and perform identically. Order today for a straightforward swap on your John Deere R or M series tractor.

$312.00 AUD

$283.64 excl. GST

In stock

Part number: Part Nr.: CR-3041S
