CR-3019S – Universal Round LED Headlight Pair

No products in the cart.

High-Performance

Purpose Built

3 Year Warranty

Headlights

CRAWER Universal Round LED Headlight Pair

Specifications

Brand	CRAWER
Headlight Functions	High Beam, Low Beam

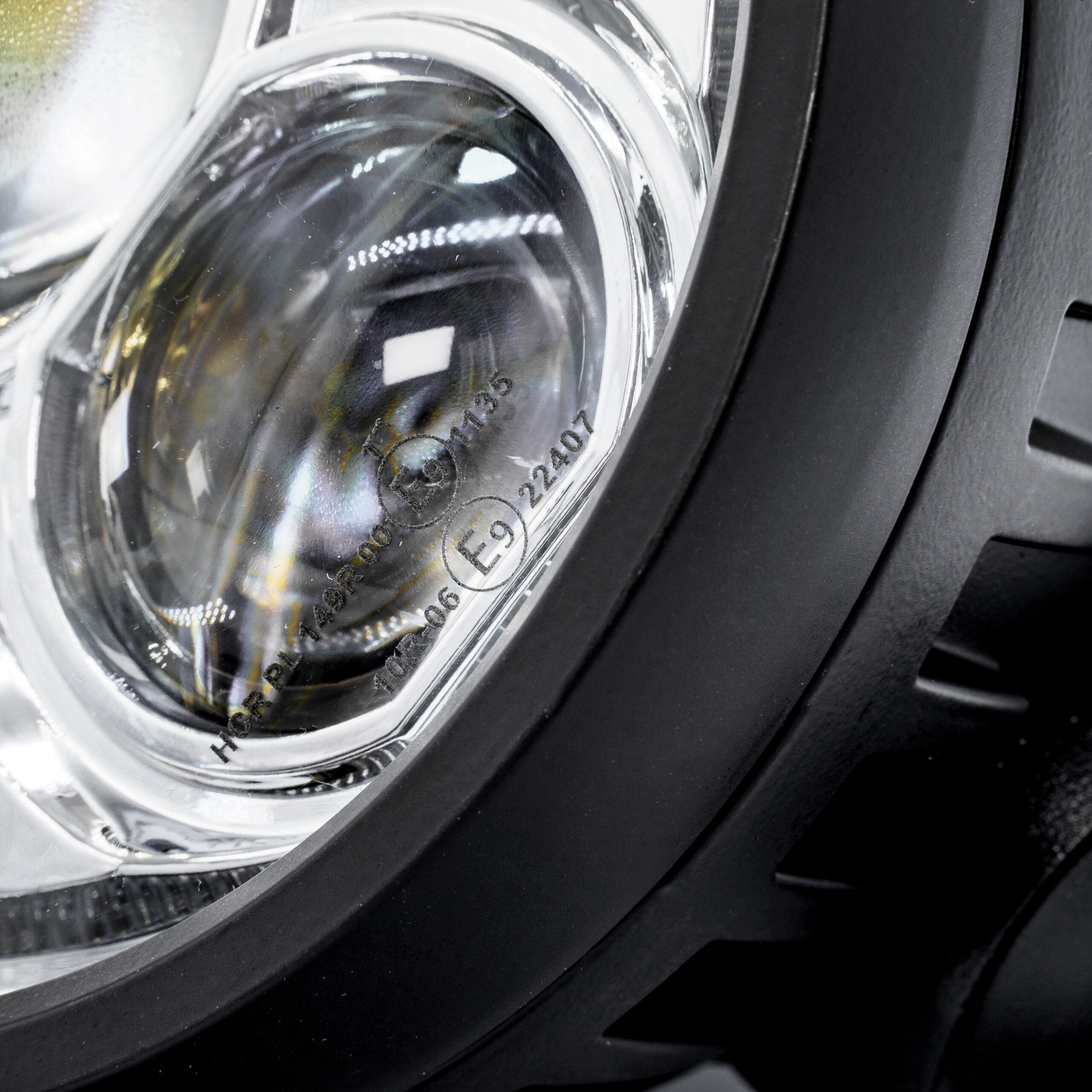

Classed As Road Legal	E-marked (specific approval numbers not published by source)
Colour Temp	5500K
Electrical Protection	Radio frequency interference free I CISPR 25 class 4
Finish	Aluminum
Input Voltage	10-32V
IP Rating	IP67
Output	30W Low Beam, 60W High Beam

CRAWER Universal Round LED Headlight

Brand	CRAWER
Headlight Functions	High Beam, Low Beam
Classed As Road Legal	R112 / R10
Colour Temp	5500K
Electrical Protection	Radio frequency interference free I CISPR 25 class 4
Finish	Powder-coated aluminum
Harness Connector	3 Core Cable (40cm)
Input Voltage	10-32V
IP Rating	IP67
Output	30W Low Beam, 60W High Beam

Product information

This set includes 2 CRAWER round LED headlights, combining low beam and high beam in one surface-mount unit. Each headlight connects via an open-ended 3-wire, 30 cm cable, so you only need a connector matching your machine.

With a 10–32V input, IP67 sealing and an impact-resistant polycarbonate lens, these headlights are built for constant field use. Commonly fitted to John Deere, New Holland and Case tractors, though the aluminium housing and standard voltage range suit many other agricultural machines.

(See all headlights by clicking here)

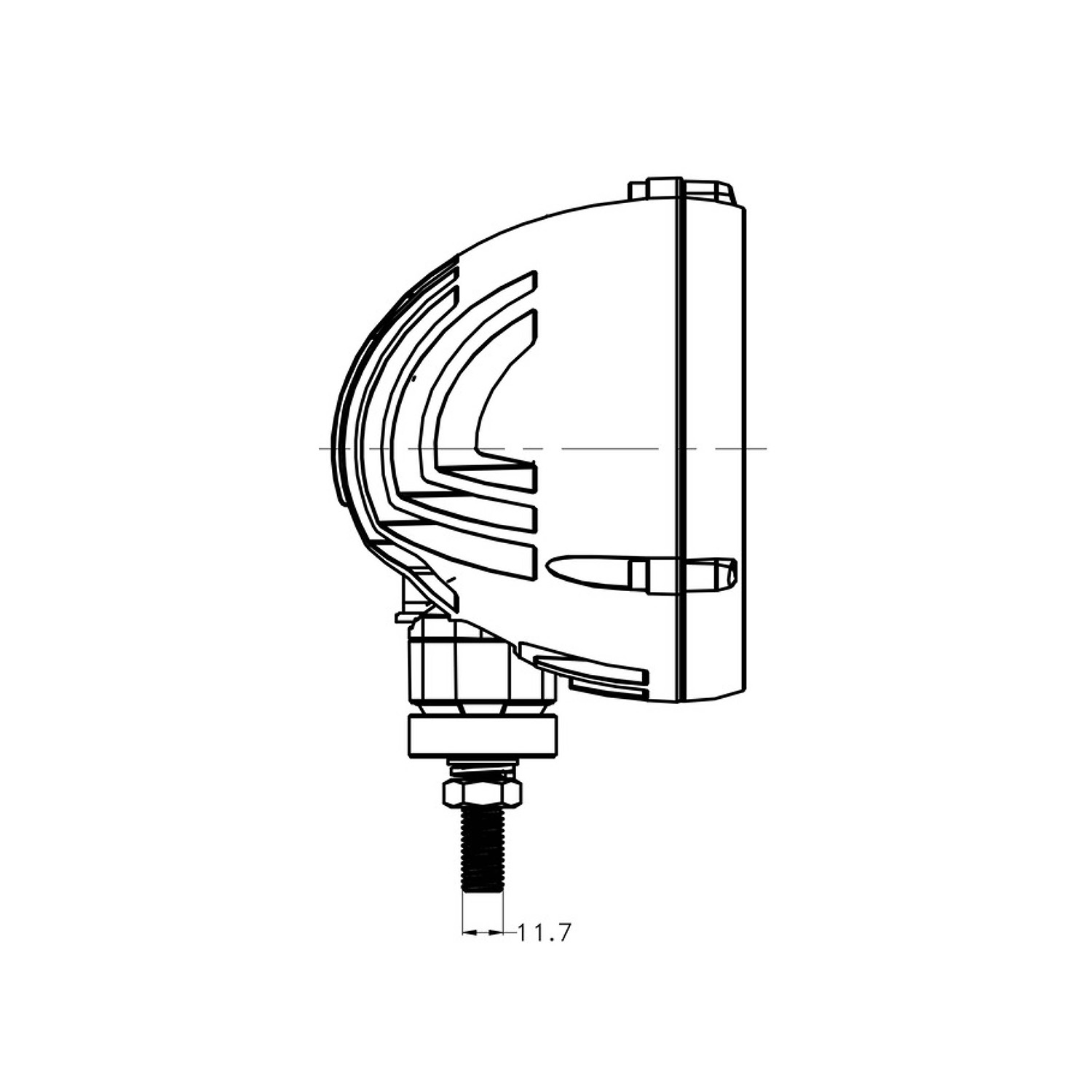

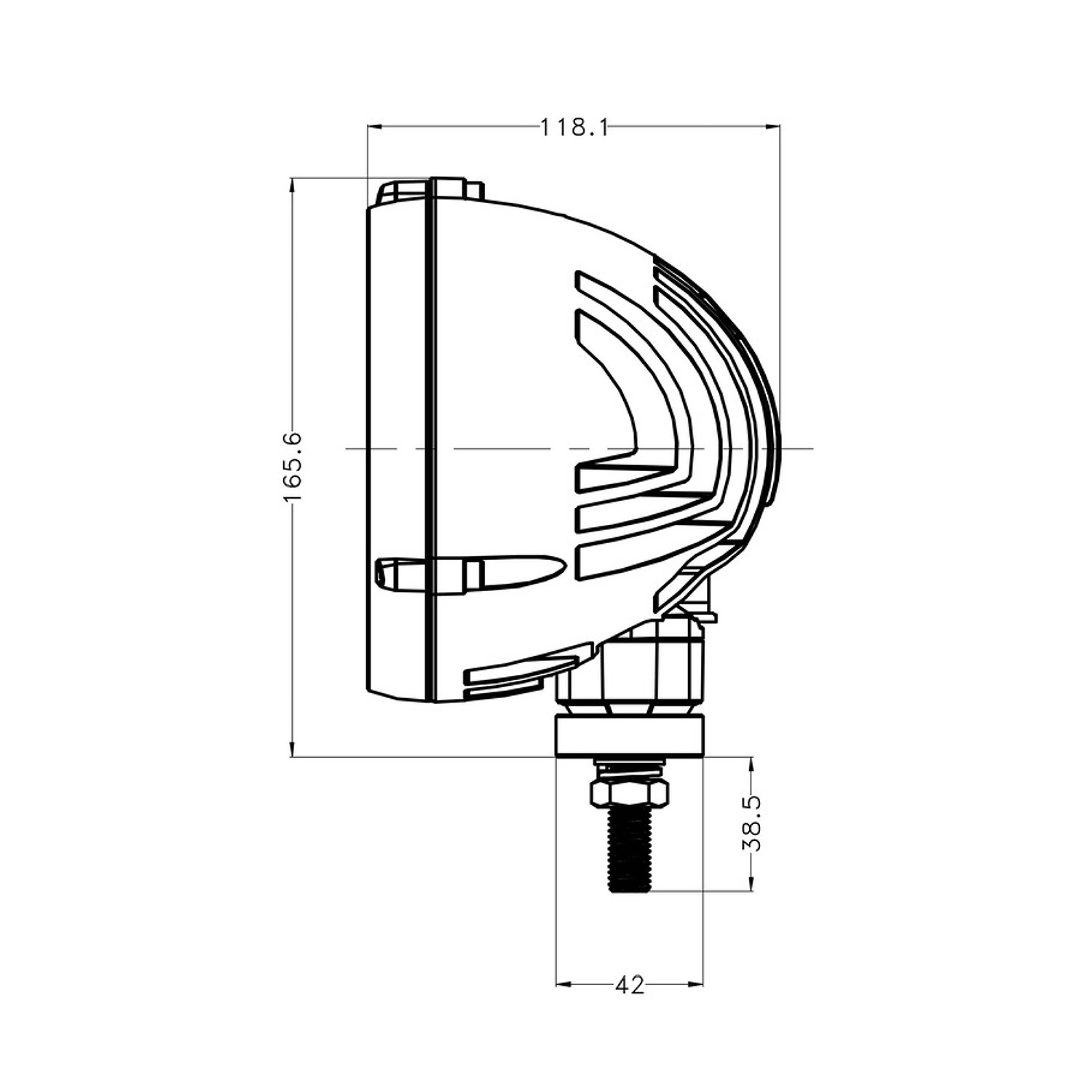

Dimensions and installation

Width: 144.4 mm
Height: 165.6 mm
Depth: 118.1 mm
Red wire: Positive high beam
Blue wire: Positive low beam
Black wire: Negative / earth

Tip: the cable ends are open, so confirm your tractor’s connector type before ordering.

Compatibility

This headlight pair suits machines using a 10–32V system with a round headlight mount. It is commonly fitted to John Deere, New Holland and Case tractors.

Because it is based on a standard round housing and voltage range rather than brand-specific fittings, it can also be used across various other agricultural and off-road vehicles.

Also suitable for other machines?

Yes, as long as the mounting size and 10–32V system match. Always check the available space and wiring configuration before installation.

If in doubt, contact us for advice.

Why IP67 sealing and CISPR Class 4 matter

IP67 sealing:
An IP67 rating means the housing is fully dust-tight and protected against temporary submersion, so mud, rain and dust from paddock work won’t affect the electronics or connections.

CISPR Class 4 interference suppression:
Class 4 suppression stops the LED drivers from interfering with GPS receivers, two-way radios and onboard electronics, which matters on tractors fitted with guidance or telemetry systems.

Frequently asked questions

What connector do I need?

The cable ends are open, so you’ll need a connector matching your tractor’s existing headlight plug.

Are these headlights waterproof?

Yes, they’re rated IP67, so they handle rain, mud and dust without issue.

Will they interfere with my GPS or radio?

No, they’re built to CISPR Class 4 so they won’t cause interference with onboard electronics.

Can I fit these to a New Holland or Case tractor?

Yes, they’re commonly used on John Deere, New Holland and Case tractors with a round headlight mount.

Why choose this CRAWER Universal Round LED Headlight Pair at Wattz?

We specialise in LED lighting for agricultural machinery and help you choose the right solution for your setup. Read our customer feedback on Google.

This round headlight pair is a robust, no-fuss upgrade for tractors still running factory halogen units. Order the set today and fit both sides in one go.

$397.00 AUD

$360.91 excl. GST

In stock

Part number: Part Nr.: CR-3019S
