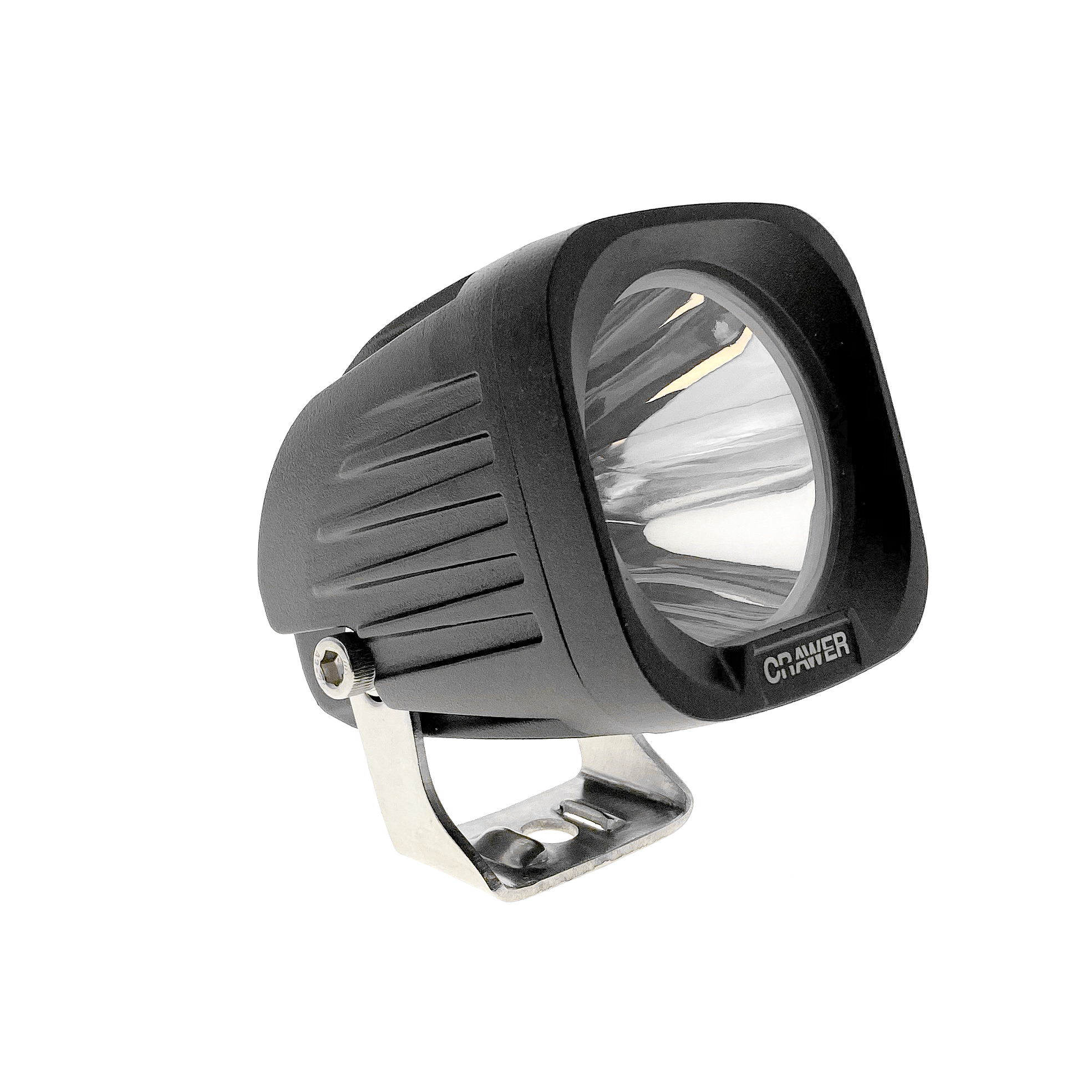

CRAWER 25W LED Work Light, Spot Beam

This CRAWER 25W LED work light is a compact, high-output spot light built for long-range illumination in the field. Cree XTE high-intensity LEDs push out a focused 10° beam, making it easy to light up distant work areas from a roof, fender, or boom mount. It connects through a factory-fitted Deutsch DT 2-pin plug, with a 30 cm pigtail cable included, so it slots straight into existing wiring using the same connector.

With 2100 lumens of cool white 6000K light and a 10-32V input range, this light is built to standard dimensions and a widely-used connector rather than one specific brand, so it suits a broad range of agricultural and off-road machines. The adjustable bracket lets you fine-tune the beam direction, which is handy for headland turns, night tillage, or spraying work where a tight, long-throw beam matters more than wide flood lighting.

(See all work lights by clicking here)

Dimensions and installation

• Width: 70 mm
• Height (with bracket): 84 mm
• Depth: 88 mm
• Housing: powder-coated aluminium with a PMMA lens

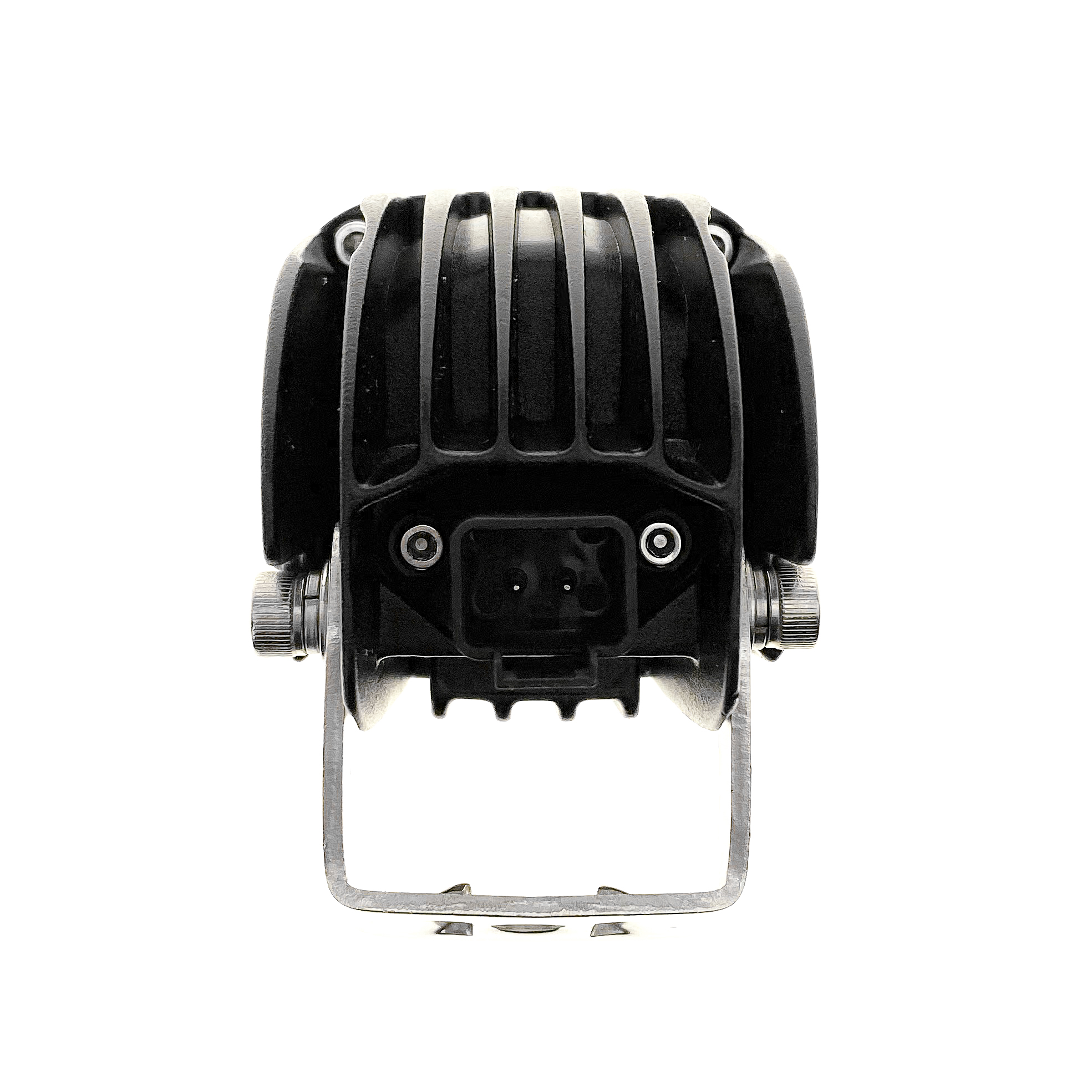

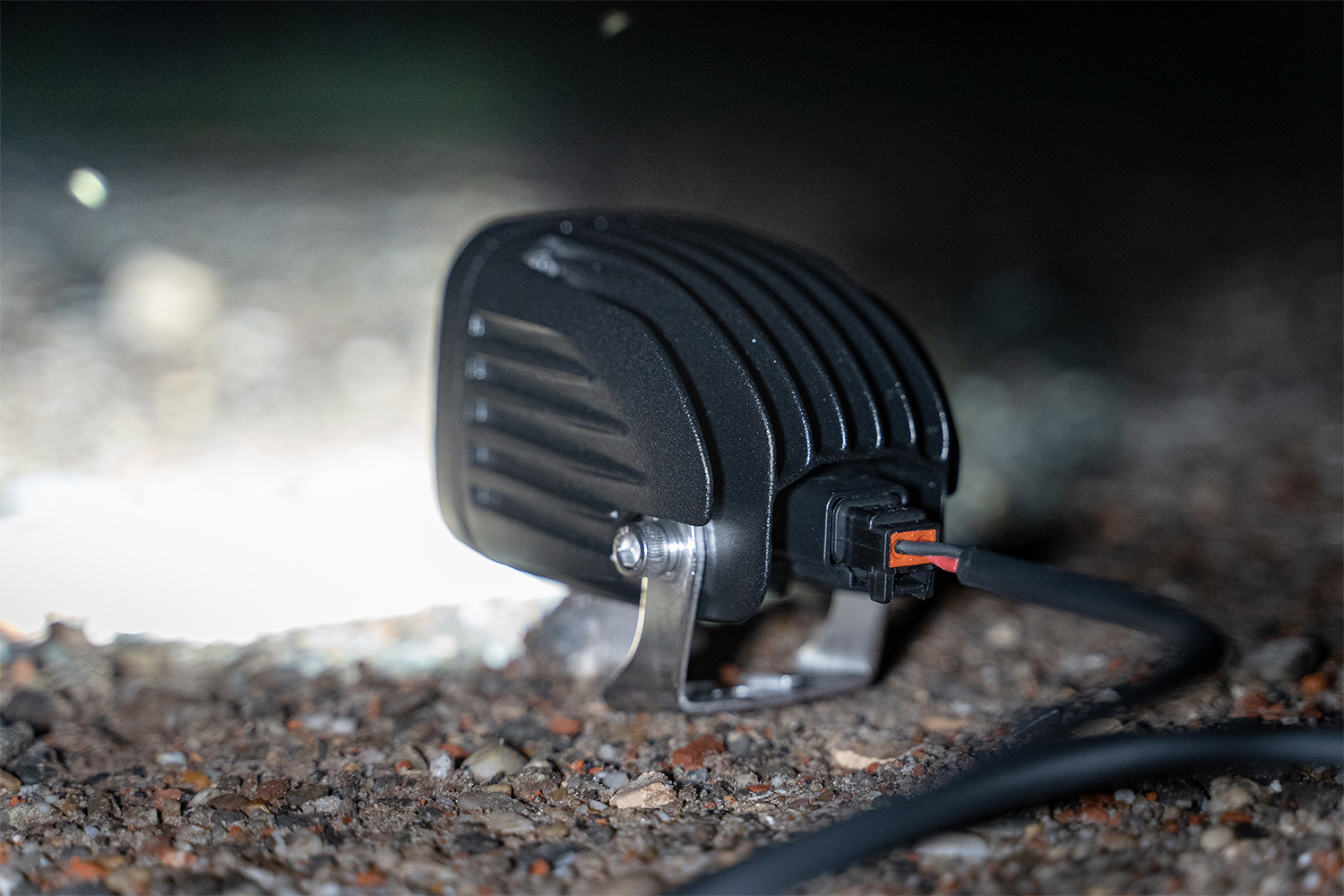

• Cable: 30 cm pigtail with Deutsch DT 2-pin connector

Tip: check the available mounting space and bracket clearance before ordering, and confirm your existing wiring uses a matching Deutsch DT 2-pin connector.

Compatibility

This work light is suitable for machines using a Deutsch DT 2-pin connector and a 10-32V electrical system.

Because it’s built around standard dimensions and a widely-used connector rather than a brand-specific fitting, it can be mounted on a wide range of agricultural and off-road vehicles wherever the voltage and connector match.

Also suitable for other machines?

Yes, as long as the electrical system and connector type match. Always check the available mounting space and wiring configuration before installation.

If in doubt, contact us for advice.

Why CISPR Class 4 and IP67 matter

CISPR Class 4 electrical protection:
Agricultural cabs are full of sensitive electronics, from GPS guidance to two-way radios and CANBUS systems. A work light without proper interference suppression can introduce static or signal drop-outs on this gear. CISPR Class 4 certification means this light has been tested not to interfere with nearby radio or navigation equipment.

IP67 sealing:
Field work means dust, mud, and driving rain. An IP67 rating means the housing is dust-tight and can handle brief submersion, so the internal electronics stay protected through wash-downs, creek crossings, and long days in wet conditions.

Frequently asked questions

Why choose this CRAWER 25W LED work light at Wattz?

We specialise in LED lighting for agricultural machinery and help you choose the right solution for your setup. Read our customer feedback on Google.

This 25W spot light punches well above its size for long-range visibility, and its Deutsch DT 2-pin connector with 30 cm pigtail make it a genuine plug-and-play fit across a wide range of machines. Order today for reliable long-throw lighting that won’t interfere with your cab electronics.
