CR-1050 – CRAWER 45W LED Spotlight 5"

No products in the cart.

High-Performance

Purpose Built

3 Year Warranty

Spotlights & Light Bars

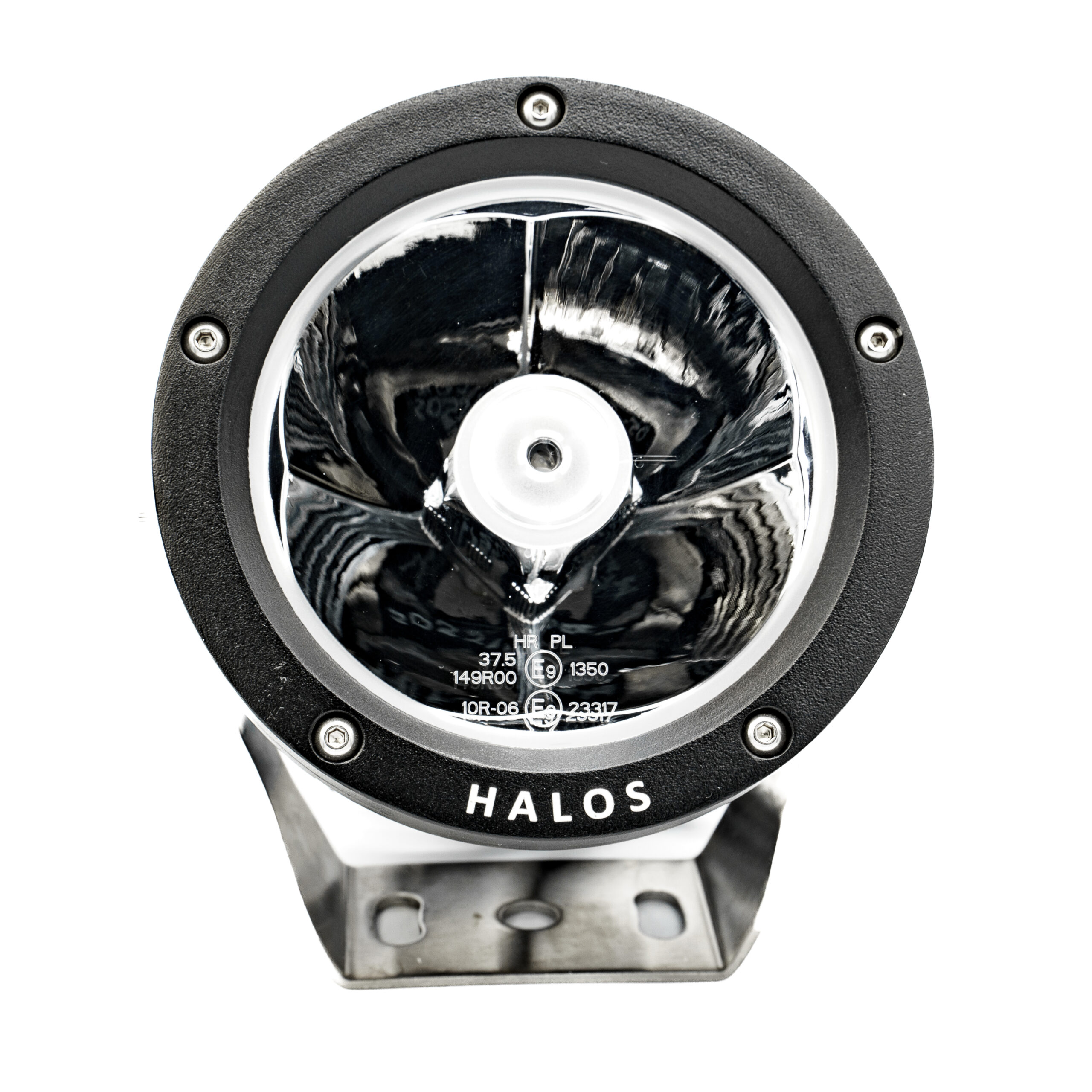

CRAWER HALOS Series 45W LED Spotlight 5"

Specifications

Brand	CRAWER
Beam Angle	10° Spot Beam
Colour Temp	6000K
Electrical Protection	Radio frequency interference free I CISPR 25 class 4
Finish	Powder-coated aluminum
Harness Connector	3 Core Cable (1.5m)
Input Voltage	10-32V
IP Rating	IP67
Lumens	3600
Output	45W

Product information

This 5 inch round LED spotlight from the CRAWER HALOS Series is built for long-range illumination on farm and off-road vehicles. The powder-coated aluminium housing is pre-wired with a 3 core, 1.5 m cable, so it wires straight into an existing loom without cutting or splicing.

With 45W of output and 3600 lumens on a tight 10° spot beam at 6000K, it throws light a long way down the paddock rather than lighting up the area close to the machine. CISPR 25 class 4 interference protection and an IP67 rating make it suitable for constant vibration and wet conditions.

(See all spotlights and light bars by clicking here)

Dimensions and installation

Housing diameter: 5 inch, round profile
Finish: Powder-coated aluminium
Cable: 3 core, 1.5 m pigtail
Input voltage: 10-32V

Tip: check the available mounting space and the length of your existing wiring loom before ordering.

Compatibility

This spotlight is suitable for machines using a standard round bracket mount and a 10-32V electrical system, which covers most tractors, harvesters and other agricultural equipment.

Also suitable for other machines?

Yes, as long as the mounting bracket and 10-32V electrical system match. Always check the available space and wiring configuration before installation.

If in doubt, contact us for advice.

Why CISPR Class 4 and IP67 matter

CISPR 25 Class 4: this is the strictest tier of radio-frequency interference suppression, which matters because unsuppressed LED lighting can introduce static into two-way radios, GPS receivers and CAN-bus electronics on modern machinery.

IP67 rating: the housing is sealed against dust ingress and temporary submersion, so washdown, rain and dust from paddock work won’t affect the internal electronics.

Frequently asked questions

How do I mount this spotlight ?

It uses a standard round bracket that bolts to most existing mounting points. Confirm the bracket footprint matches your machine before ordering.

Will it interfere with my radio or GPS ?

No. It carries CISPR 25 Class 4 certification, the highest interference suppression tier, so it won’t introduce static into radios or GPS/CAN-bus systems.

Is it safe to use in wet or dusty conditions ?

Yes, the housing is rated IP67, meaning it’s sealed against dust and can handle temporary submersion such as washdown or heavy rain.

Can I order more than one for my machine ?

Yes, there’s no limit. Many customers pair two or more of these spotlights for wider paddock or yard coverage.

Why choose this CRAWER HALOS 45W LED spotlight at Wattz?

We specialise in LED lighting for agricultural machinery and help you choose the right solution for your setup. Read our customer feedback on Google.

The HALOS Series 45W is one of the more affordable long-range spotlights in our range without dropping interference protection down from Class 4. Order today for a straightforward plug-in upgrade to your existing lighting.

$185.00 AUD

$168.18 excl. GST

In stock

Part number: Part Nr.: CR-1050
