CRAWER 45W LED Work Light for John Deere

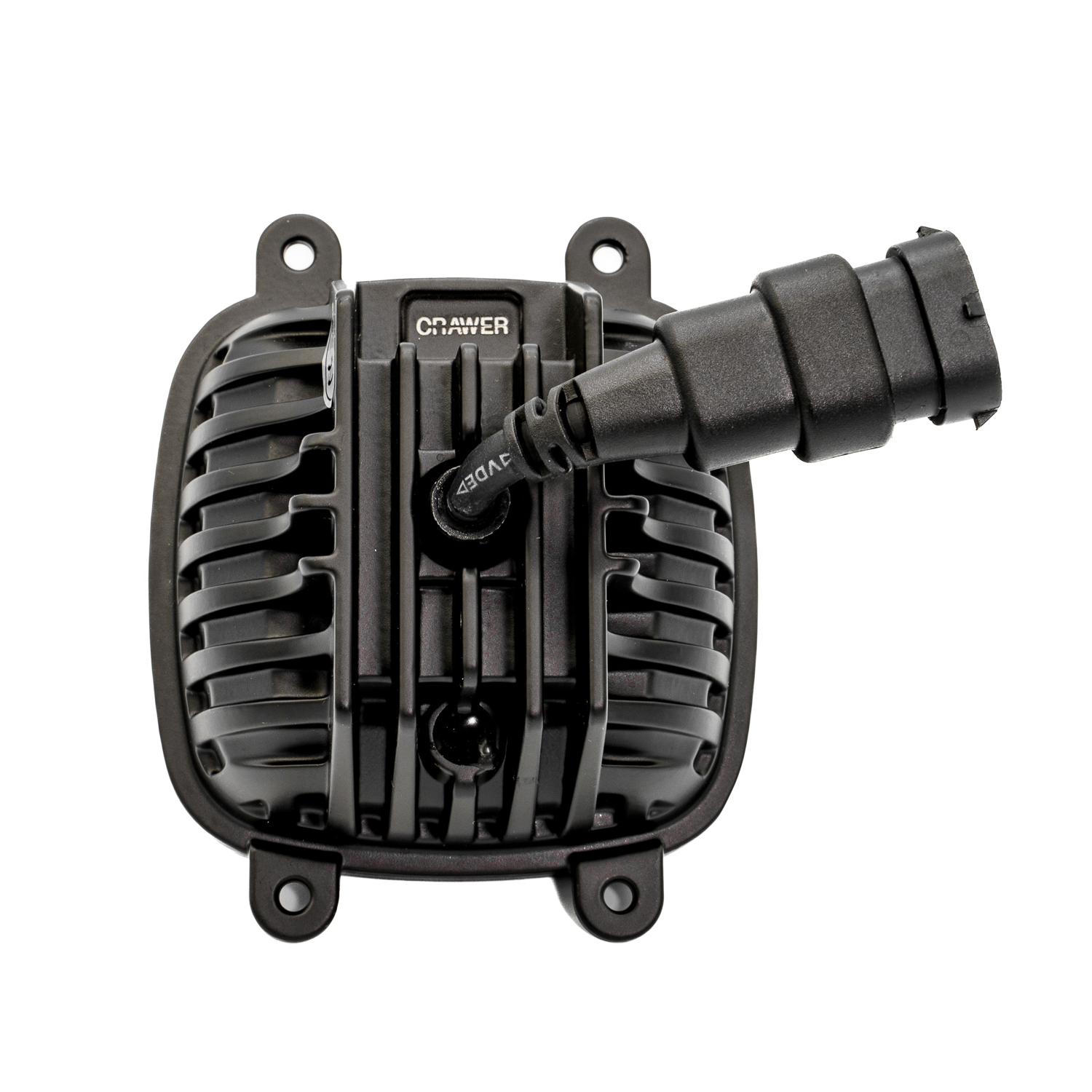

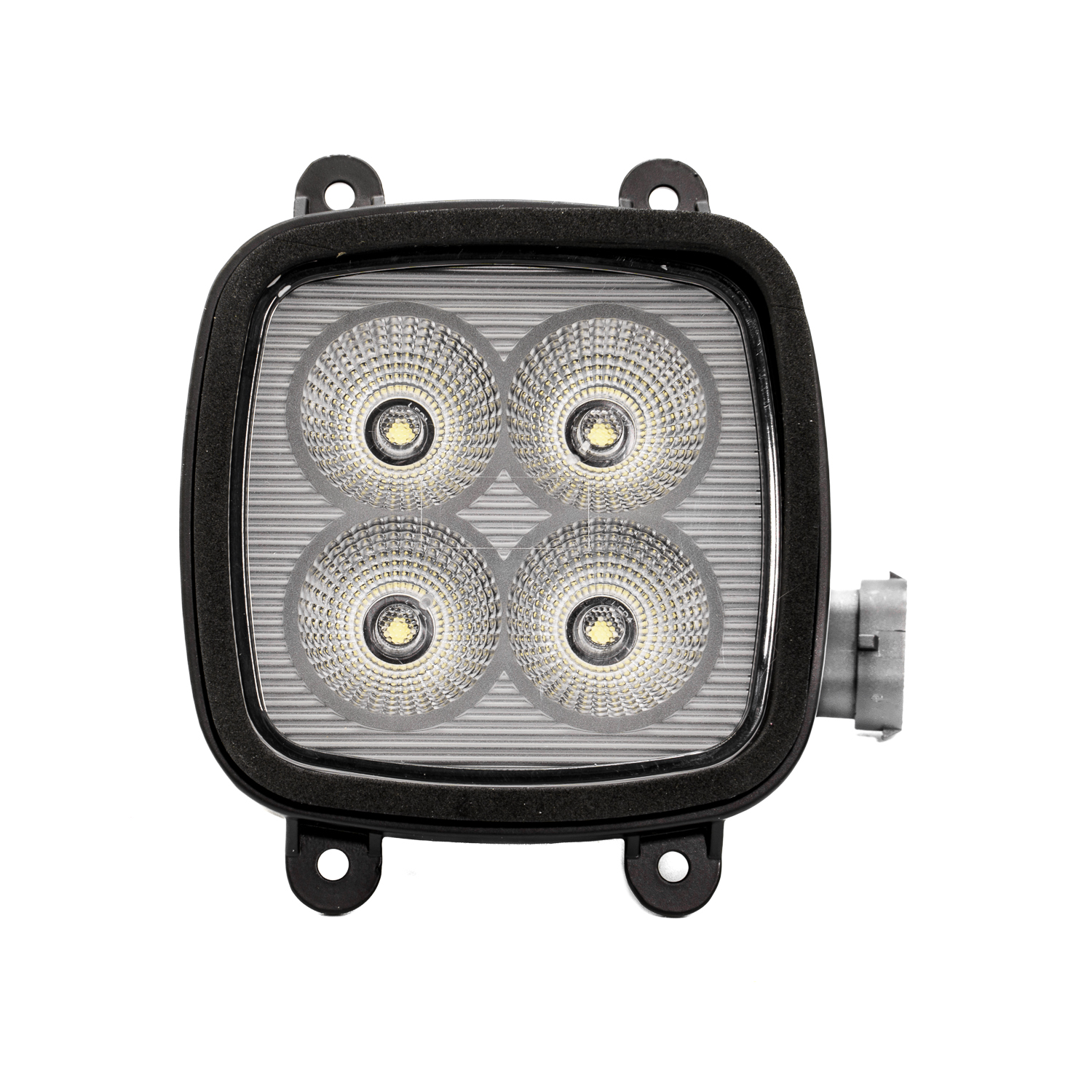

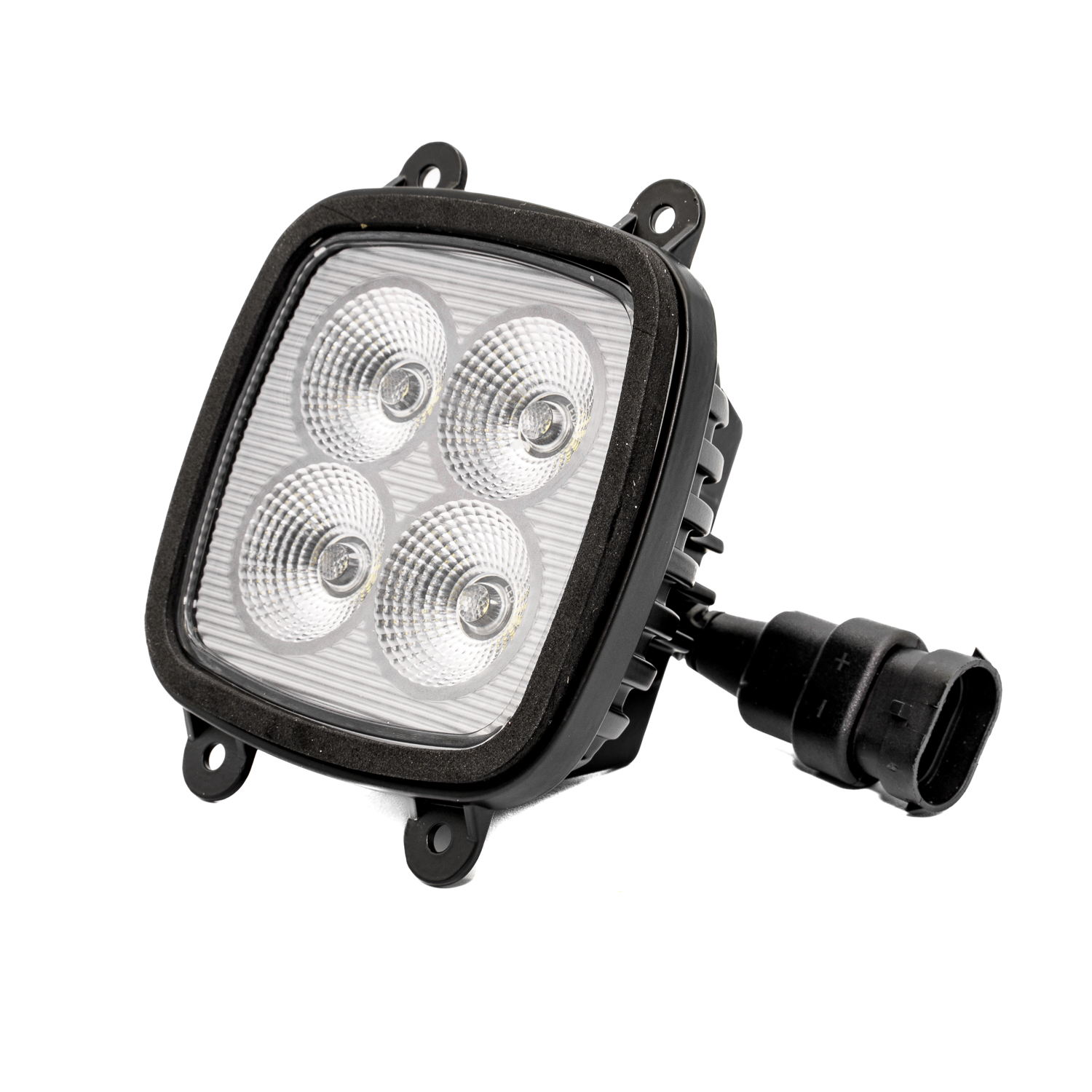

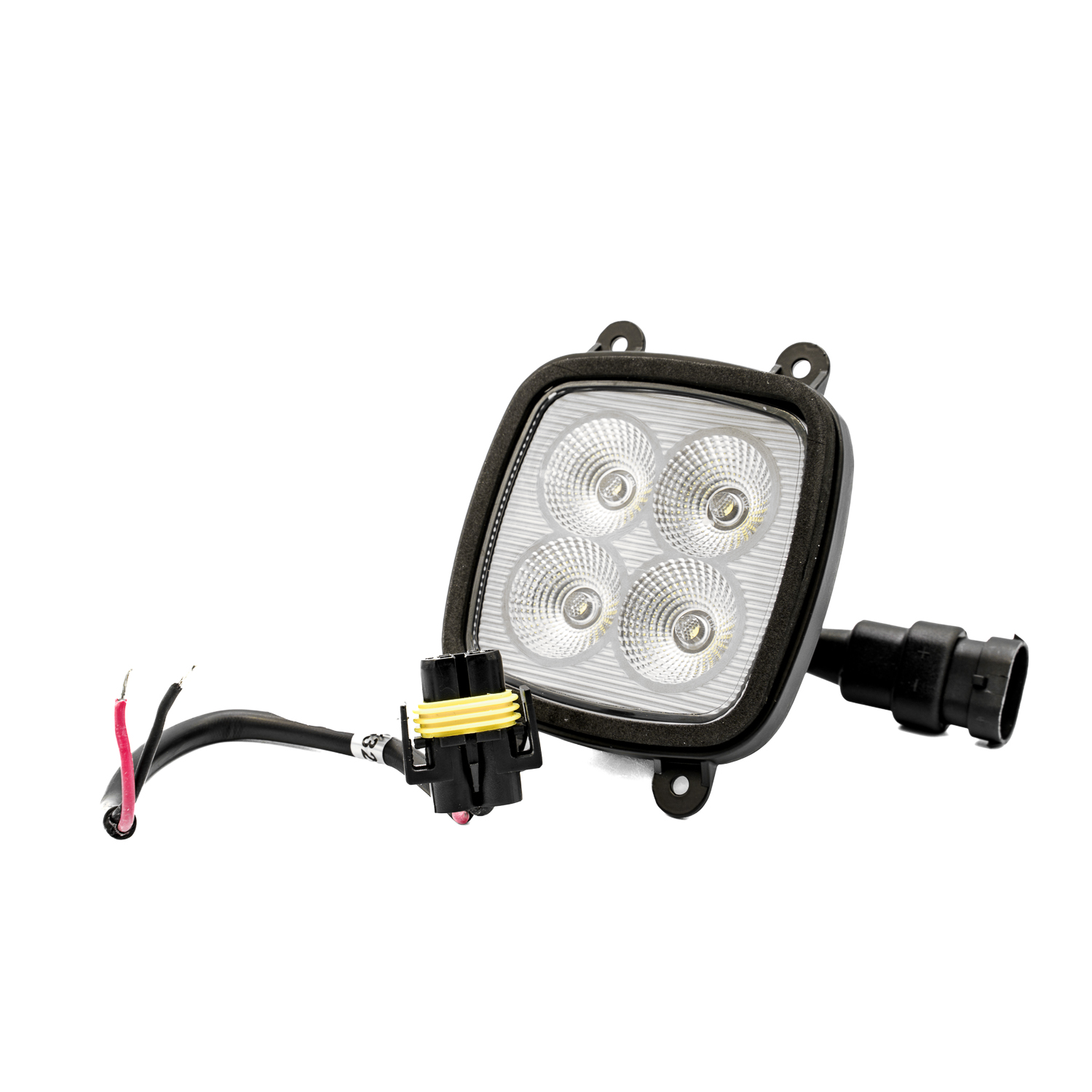

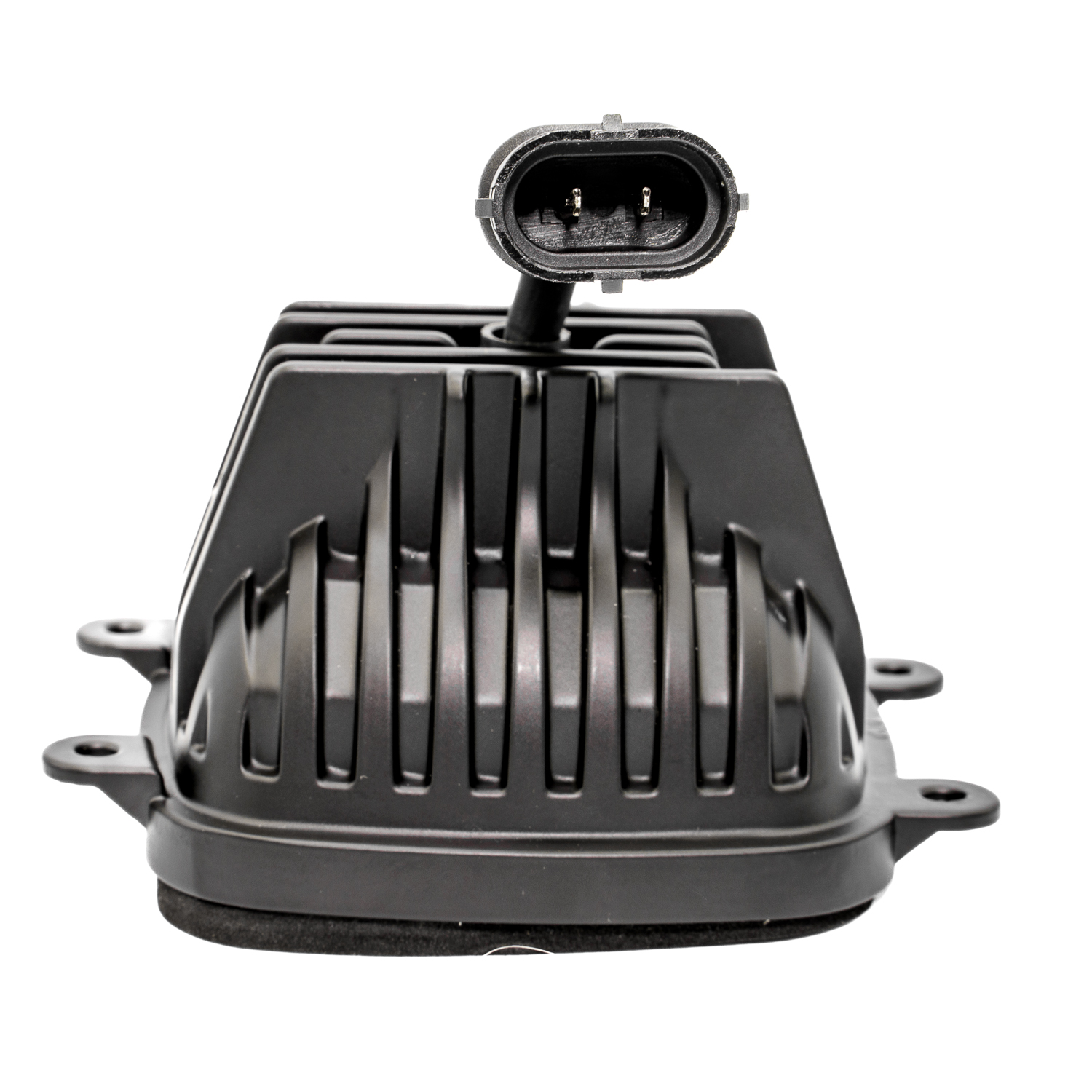

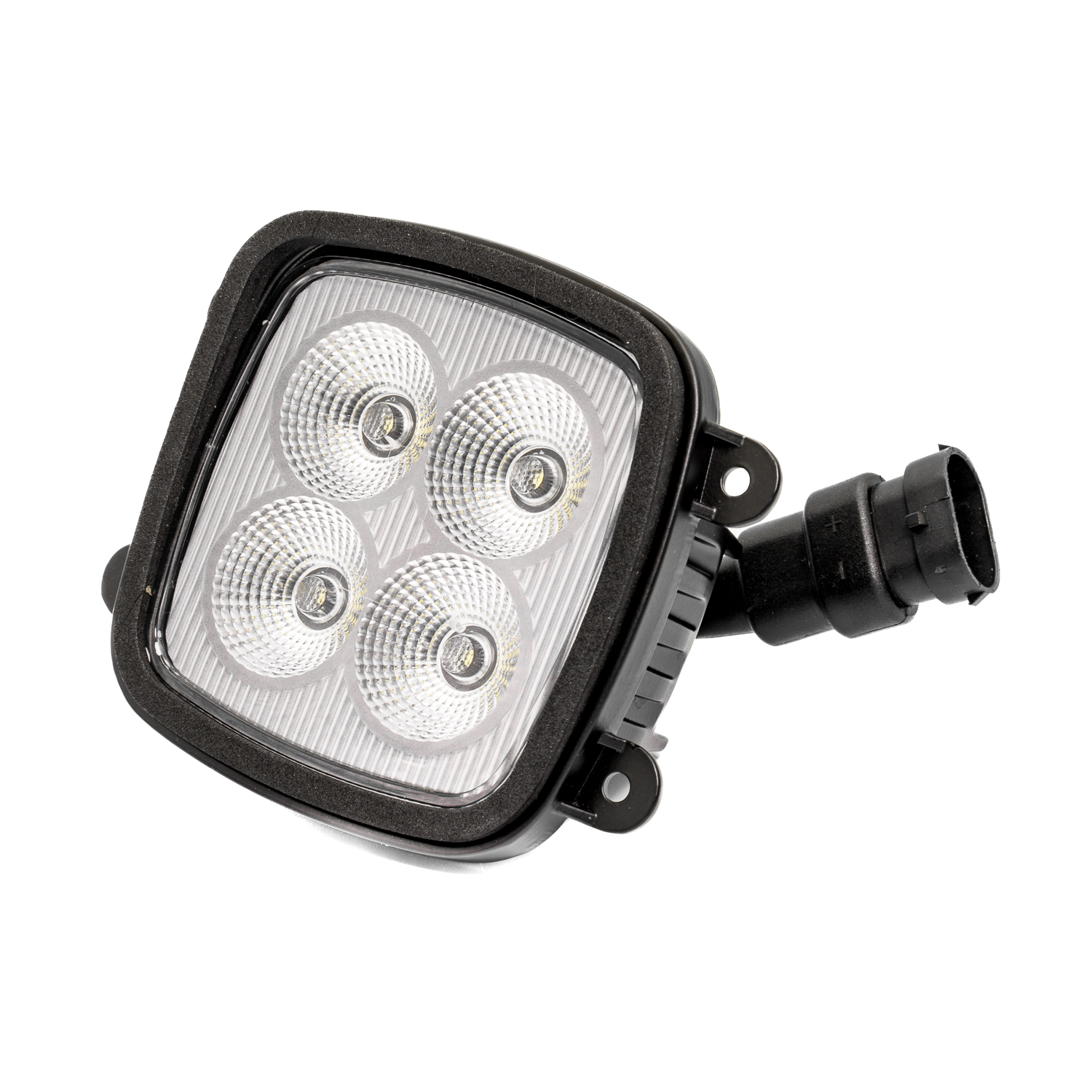

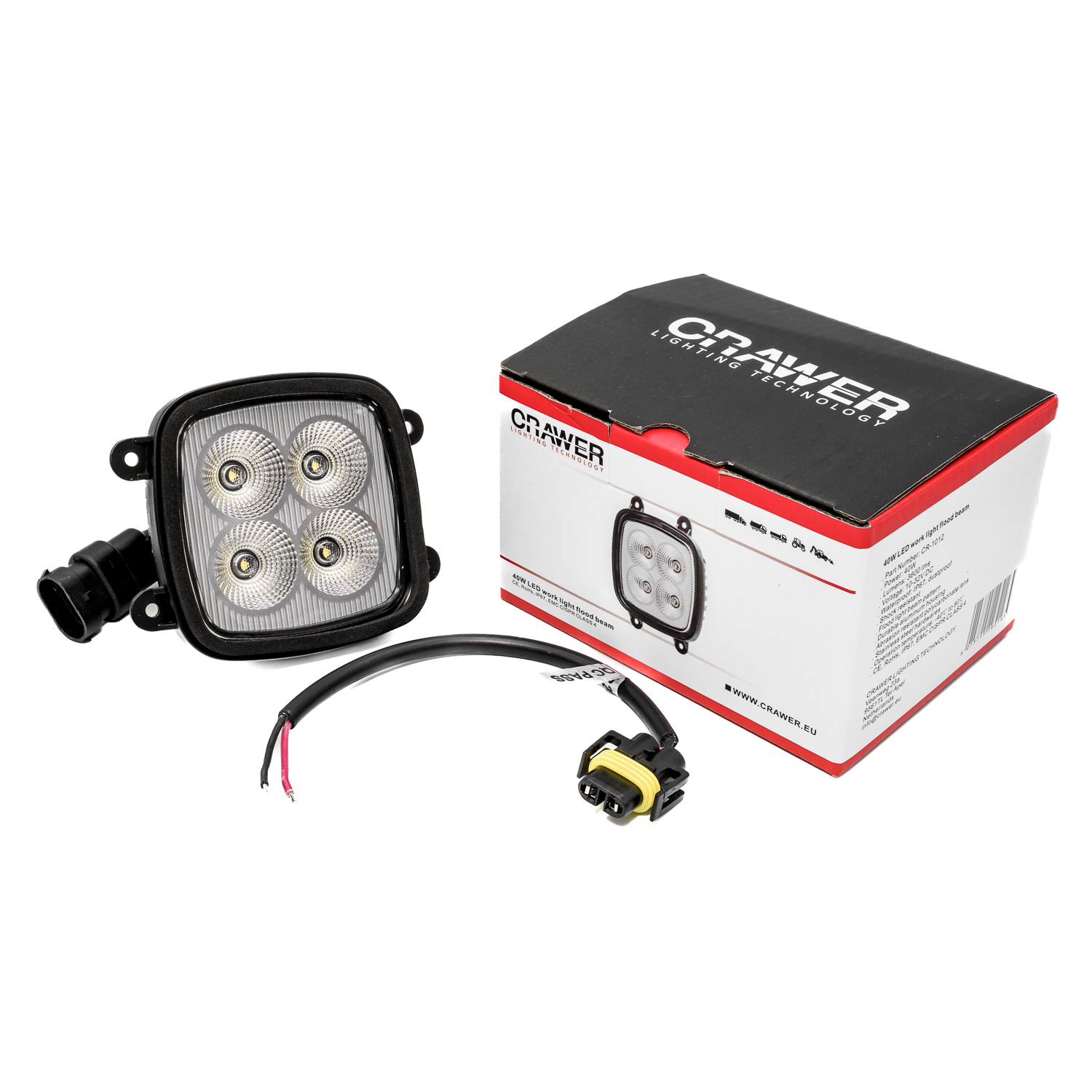

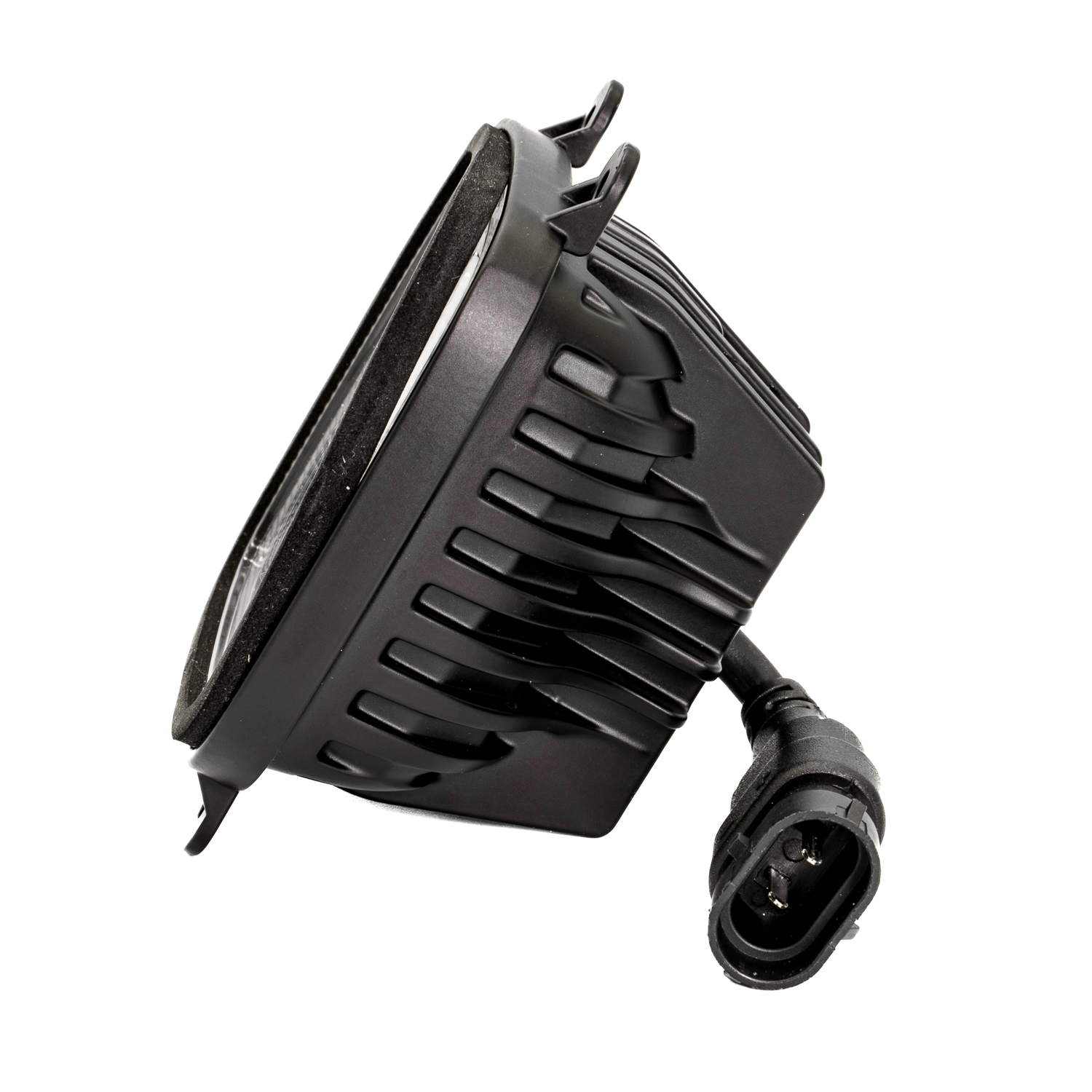

This CRAWER work light is a direct replacement for the factory halogen units fitted to John Deere 40 series tractors, including the 2040, 2050, 3040, 3050 and 4040 models. The powder-coated aluminium housing holds 9 high-intensity 5W Cree XTE LEDs behind a PMMA lens, and the centre mounting bracket is adjustable so you can fine-tune the beam direction once it’s fitted.

With a wide 10-32V input, this light runs on both 12V and 24V electrical systems. The 60° flood beam puts out 4100 lumens of cold white 6000K light, and the 2-core 95cm cable keeps the wiring simple. IP67 sealing and CISPR Class 4 EMC suppression mean it stands up to dust, moisture and vibration without interfering with the cab radio or electronics.

(See all work lights by clicking here)

Dimensions and installation

• Length: 143 mm
• Height (with bracket): 165 mm
• Height (without bracket): 146 mm
• Depth: 79 mm
• Mounting: adjustable centre bracket
• Cable: 2-core cable, 95cm

Tip: the bracket lets you adjust beam direction after fitting, but check clearance around your existing housing before ordering to confirm a clean fit.

Compatibility

Designed for John Deere tractors fitted with the 40 series headlight housing.

• 40 series: 2040, 2050, 3040, 3050, 4040

Also suitable for other machines?

This unit is dimensioned for the John Deere 40 series housing only. The mounting position and lens shape are matched to those models and it isn’t intended as a universal fit for other brands.

If you’re running a different tractor and want a comparable LED upgrade, contact us and we’ll point you to the right product in our range.

Why IP67 and CISPR Class 4 matter

IP67 sealing:
Dust and moisture work their way into open equipment fast, and a compromised seal is one of the most common reasons a work light fails early. IP67 protection keeps the internals sealed against dust ingress and temporary submersion, so the light keeps working through wash-downs, rain and dusty paddock conditions.

CISPR Class 4:
Cheaper LED lights can flood the cab’s electronics with radio-frequency noise, causing static on the radio or glitches on the tractor’s onboard systems. CISPR Class 4 certification means this light has been tested to suppress that interference, so your radio and cab electronics keep working cleanly alongside it.

Frequently asked questions

Why choose this CRAWER LED Work Light at Wattz?

We specialise in LED lighting for agricultural machinery and help you choose the right solution for your setup. Read our customer feedback on Google.

The CR-1028 drops straight into the factory housing on 40 series John Deere tractors, so there’s no cutting or splicing — just a direct swap for a brighter, more durable light. Order today for a clean upgrade that keeps the original look of your tractor intact.
