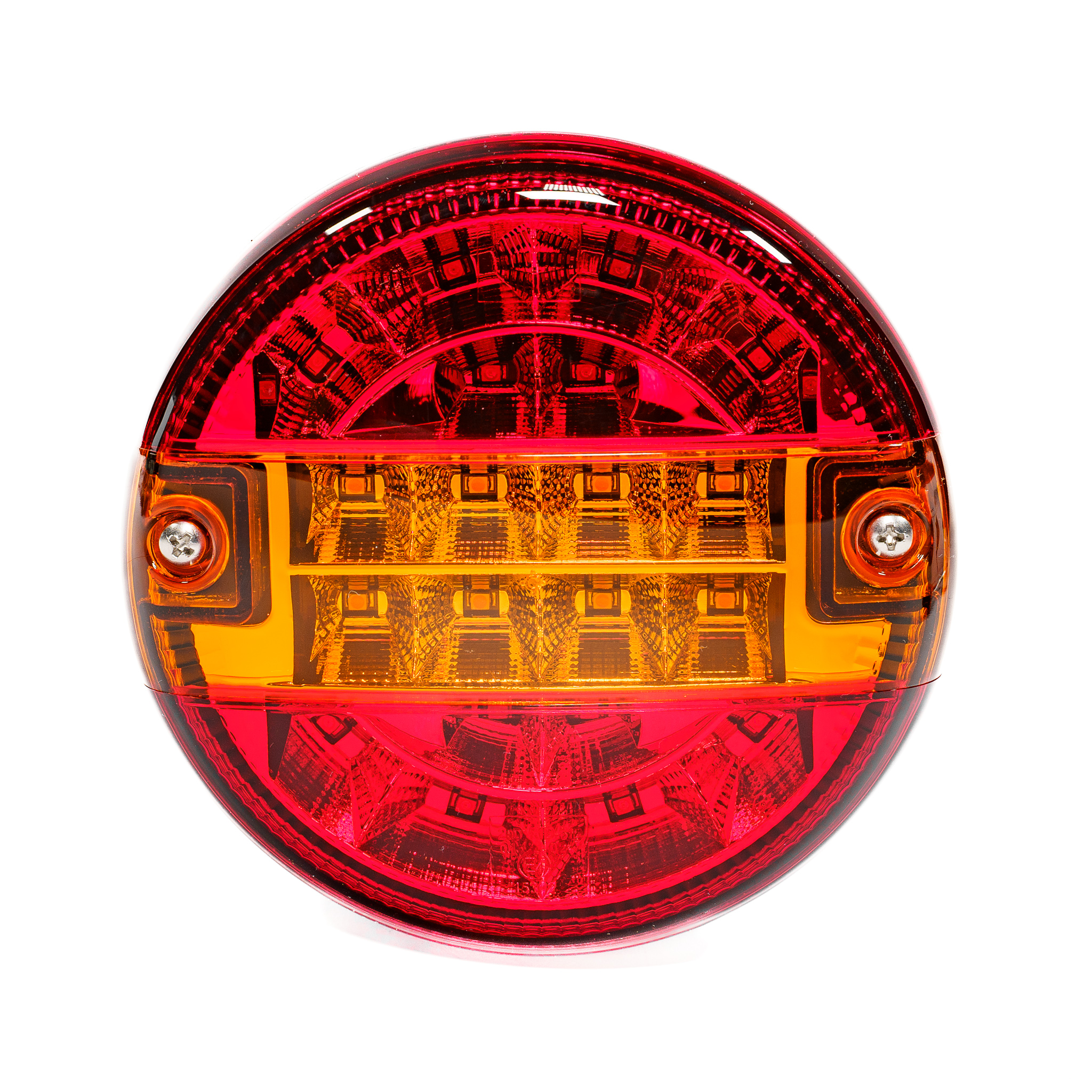

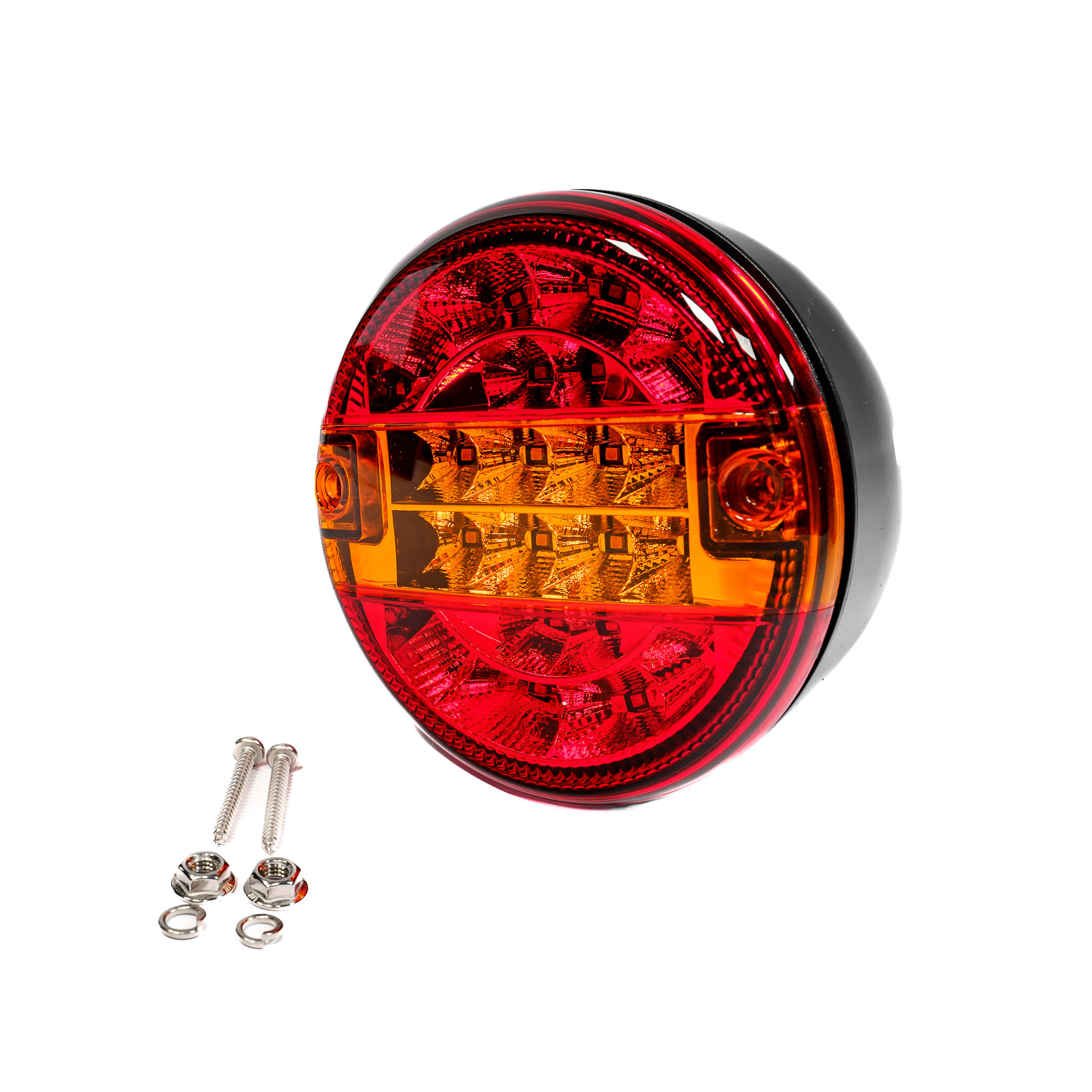

12-24V Round LED Tail Light – Hella Hamburger Replacement

This round 140 mm LED tail light is a direct housing replacement for the classic Hella Hamburger rear light, fitted to a wide range of trucks, trailers and tractors. It bolts straight into the existing mounting holes at 45 mm centre-to-centre spacing, with a plug-and-play connector that slots into the original wiring loom — no cutting or splicing required.

Built for 12-24V electrical systems, the light carries E-mark approval for road use and is fully sealed to IP67, so dust and water ingress aren’t a concern even in tough field conditions. Because the fitting is based on the standard Hamburger housing rather than a specific brand, it works across most agricultural and commercial vehicles that already use this style of rear light.

(See all Tail & Marker Lights by clicking here)

Dimensions and installation

• Diameter: 140 mm

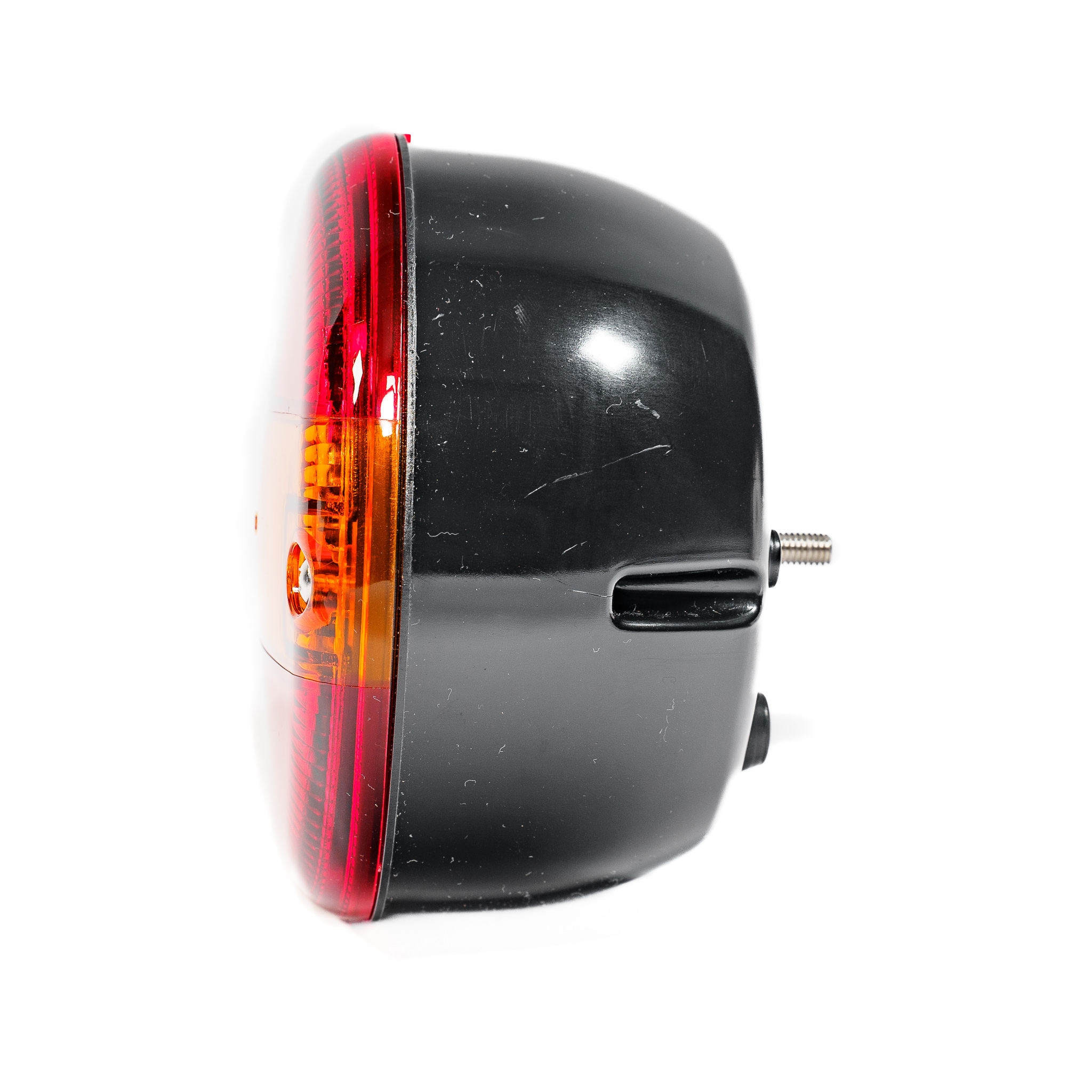

• Depth: 84 mm

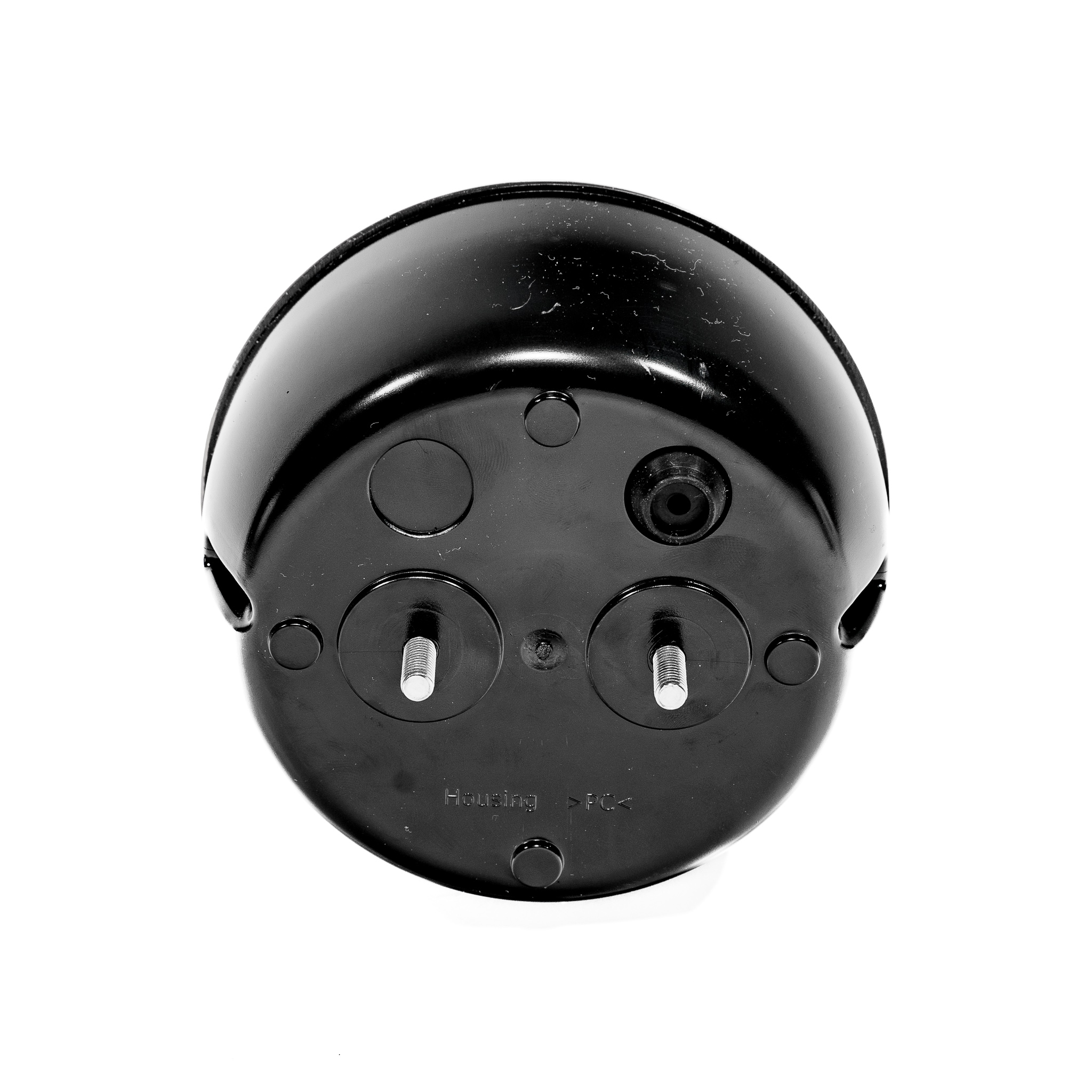

• Bolt spacing: 45 mm, centre-to-centre

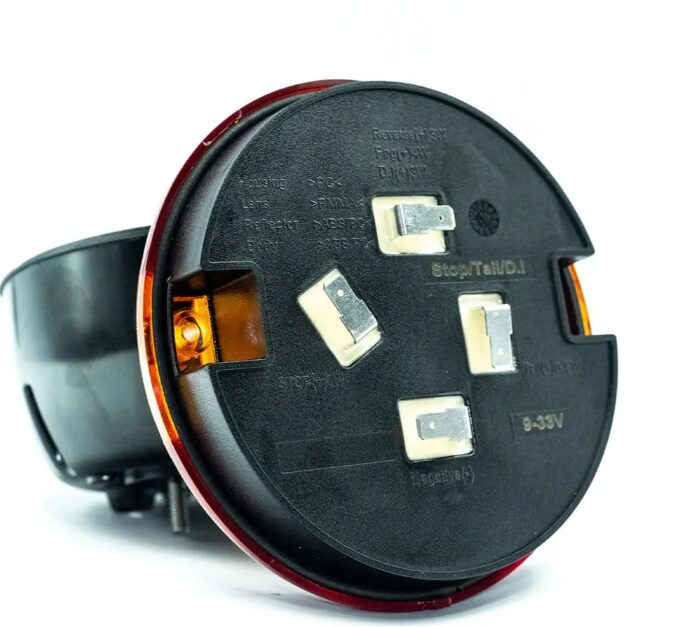

• Connector: plug-and-play, direct fit into original wiring

Tip: measure the bolt spacing on your existing housing before ordering to confirm a match.

Compatibility

This tail light is built around the standard round Hamburger-style housing (140 mm diameter, 45 mm bolt spacing), rather than being specific to one tractor or truck brand.

Because it’s based on this widely-used standard fitting, it suits a broad range of agricultural machinery, trailers and commercial vehicles that already carry a Hamburger-pattern rear light.

Also suitable for other machines?

Yes — as long as the existing housing uses the same 140 mm round Hamburger pattern and 45 mm bolt spacing, this light is a straightforward swap regardless of make or model.

If you’re unsure whether your setup matches, contact us before ordering.

Why IP67 sealing and E-mark approval matter

IP67 sealing:
Trailer and tractor tail lights sit low and take the brunt of mud, dust and standing water. An IP67 rating means the housing is fully dust-tight and can handle temporary submersion, so corrosion and moisture-related failures are far less likely over the life of the light.

E-mark approval:
The E-mark confirms the light meets the photometric and construction standards required for road use. Without it, a rear light can leave a vehicle non-compliant for on-road travel, which matters for trailers and machinery that move between paddock and public roads.

Frequently asked questions

Why choose this LED tail light at Wattz?

We specialise in LED lighting for agricultural machinery and help you choose the right solution for your setup. Read our customer feedback on Google.

This tail light is a straightforward, sealed replacement for the widely-used Hamburger-pattern housing, so you get a factory-style fit without hunting for a discontinued original part. Order today for a quick, plug-and-play swap.
